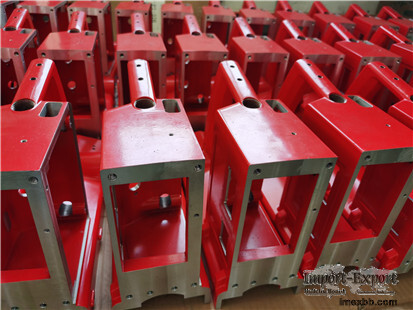

Aluminum die cast with precision machining

Aluminum die cast with precision machining die casting mold manufactory
custom pressure aluminum casting

Good machining fixture design will provide high efficiency and guaranteed
strict tolerances at same time. How many pieces on one machining fixture? We
suggest put six or eight parts when your parts size from 6CM-12CM. clamping by
air cylinder is tight enough. Some die casting producer in china still clamping
parts by screwing, this is low production efficiency. Products will deformation
if screwing to tight, cutting knife will broken when screwing bit loose.
Perfect machining fixture designer will take into consideration many facts. For
example how to make machining operator put in and take out much convenient.
Which part on casting parts fit for clamping, many part on casting body not fit
for clamping, such as thin wall, surface with casting die joint, surface with
air vent, surface with protrude ejector pin. Looking thick wall and flat part
for clamping is right chose . Many die casting tooling supplier forget indicate
the draft angle for machining workshop. it will make seriously mistake during
machining fixture design. This is why aluminum die casting mould manufactory
should provide all details information on DFM

Machining scrap wipe off by air gun should high frequency, any scrap remain on
fixture will damage parts surface, also will impact tolerances. Why some
aluminum scrap stick on machining fixture so tight? Because cooling lubrication
to sticky. To find right cooling lubrication is more important looking powerful
air gun. Many die casting manufactory in china select wrong cooling
lubrication, some to sticky, some to watery.

Machines custom design to meet specially machining request. CNC machines
customization is very popularly in custom pressure aluminum casting industry.
Particularly for large quantity products machining. Discuss between aluminum
injection molds team and machining department at soon When we get inquiry from
customer. ten years before the big project from auto industry attached us, but
price almost no any profit. We drilling hole by brother CNC drilling and
milling recombination machining center. The brother CNC drilling and milling
recombination machines have good reputation for their fast production among the
aluminum die casting factory. But the production capability still limited.
1.5cm diameter, depth 7.5 cost almost 2 minutes. Assemble line in customer
factory was very anxiety for our production capability. We purchased the custom
made deep hole drilling machines from Mitsubishi after urgency meeting. 2
minutes drill 5 deep holes. The tolerances control much strict compare the
machining center. This is great enhanced production capability. Now the
Mitsubishi deep hole machines have very good reputation among china aluminum
die casting man.

Goal Sure adopts cold chamber pressure die casting technology to customize
aluminum die casting tools for customers, and machines custom design to meet
especially machining request.

Goalsure is one of the aluminium die casting manufacturers, with complete
aluminum alloy casting equipment, and we could do aluminum casting mold making
according to drawing，
