Aluminum Oil level Indicator Gauge window Aluminum oil level gaug

GrandMfg® Aluminum Oil level Indicator Gauge window

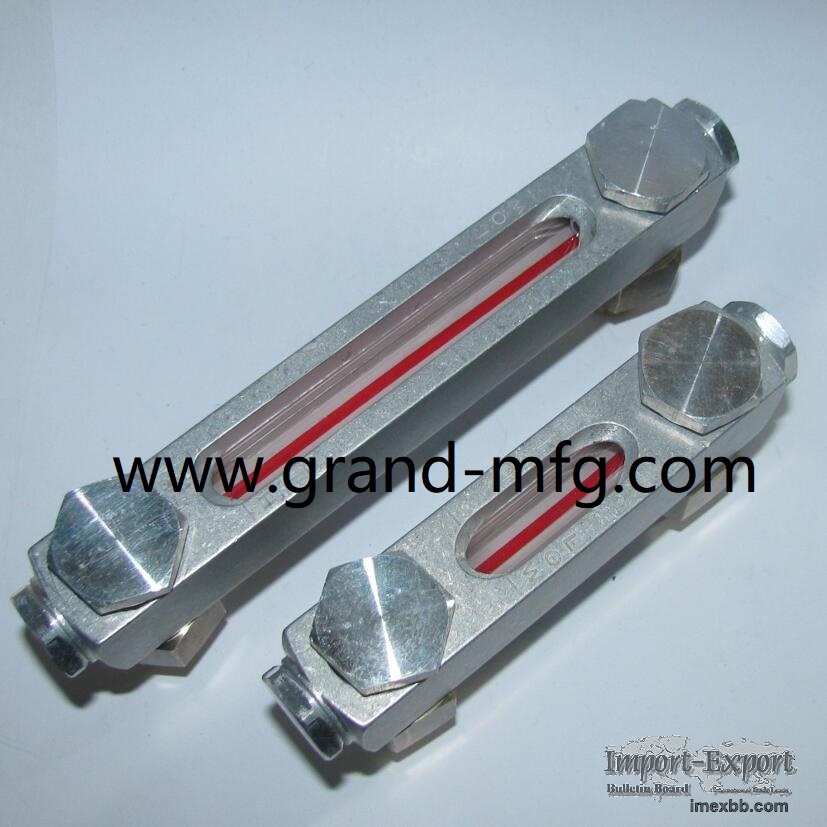

Aluminum oil level gauge indicator with glass tube.
H=length of window(mm)
Total length= (the distance of vented hole to the middle of the connector)
Housing: Aluminum square body(22.8mm)
Tube: Borosilicate Glass Tube
O-Ring and Flat gaskets: NBR Rubber.
Thread szie: M12x1.25, M14x1.5, M16x1.5
                     G1/4”, G3/8”, G1/2”
                     NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
The length of the tube: 50mm to 500mm
Usage:  Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.

Minimum Order: 200 pieces
