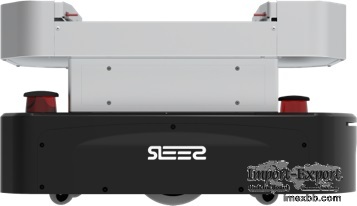

AMB-powered Roller AMR Robot

AMB-powered Roller AMR Robot, as the production docking robot, is built by
mounting roller module on AMB series unmanned chassis. Complete the
construction of the environment map and high-precision localization through the
laser SLAM algorithm and automated guided vehicle system. The repeated
localization accuracy of the laser reflectorless has reached within ±5mm, the
docking accuracy of which is ±2mm. AMB-powered Roller AMR Robots can realize
seamless connection between workshop and warehouse, production line and
another, production equipment and another according to system dispatching
orders. As one of the professional automated guided vehicle manufacturers, SEER
Group produces and manufactures amr autonomous mobile robots and agv for
warehouse of high quality.

Descriptions of AMB-powered Roller Robot
Reliable Extensibility
Compared with the carrier platform, the production line docking robot reserves
not only rich interfaces on the hardware, but also enough space on the
machinery to facilitate the docking of various conveying equipment.
Cluster Dispatching
Cooperating with SEER Enterprise Enhanced Digitalization (SEED) and one-stop
implementation tool Roboshop Pro, it can realize the flexible dispatching of
hundreds of robots.
SLAM Laser Navigation
Compared with the traditional laser navigation solution with reflector, the
production line docking robot uses contours for navigation, greatly reducing
the on-site implementation costs.
MES/WMS Interface
For users' convenient operation in software-level docking, the dispatching
system of the robot provides an MES/WMS docking interface and users can command
robots with one touch.

Specifications of AMB-powered Roller AMR Robot
Basic parameters
Product name Large roller robot
L*W*H 1000*1170*160mm
Suitable material size 900*(650±5)mm
Load capacity 300kg*1
Transfer method Single layer single roller
Machine docking height 680±2mm
Lifting height /
Lifting time /
Transfer speed 3.1-22.4 (Manually adjustable)
Shell color RAL7035
Material in place detection Three groups of optoelectronics for each roller

Chassis Based on AMB-300 series

Seers group is a professional autonomous forklift company, we provide agv reach
truck, amr forklift and etc. Want to know more? Contact us.
