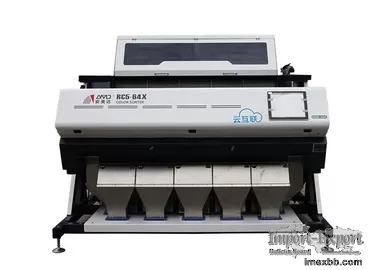

AMD 1.3 - 2.2 KW Rice Color Sorter Machine RC5 High Capacity High Accuracy

AMD Rice Color Sorter Machine , RC5 , RGB CCD , High Capacity , High
Accuracy

RC Series Rice color sorter is the high-end product which has been launched
in 2017 with remote control AI system.

New Software Technology Grain Color Sorter Machine Can Sort Different
Materials:Such As Rice, Peanuts Plastic,Beans,Quartz
Sand,Nuts,Wheat,Barley,Chickpeas,Lentils,Corn, , Coffee
Beans,Soybeans,Buckwheat,And So On.Its Work Principle Is According To
Materials' Different Color To Separate Them To Different Groups,To Reach
Improve The Materials Quality.For Example:It Can Sort Moldy Corn Out,It Can
Separate Red Plastic Particles From Mixed Colored Plastic Groups, Remove The
Bad Rice ,EX.: Yellow Rice ,Black Rice .Etc.

Zhongke Big Database
Automatic Computing and Super Brain Intelligent Identification
5400Pixel CCD Image Acquisition System
Image Processing System
Intelligent Dust Cleaning System
Self Design High Frequency Ejectors
Low Temperature LED Light Source
Intelligent LED Control System
Remote Control System

Technical Parameters:

Model
Capacity

(T/H)

Carryover

, (Bad:Good)

Accuracy

(%)

Volta , ge

(V/HZ)

Power

(KW)

W , eight

(KGS)

Dimension

(MM)

RC1 1-2 80:1 >99.9 220/50 0.5-0.8 270 875x1550x1320
RC2 1.5-3 80:1 >99.9 220/50 0.65-1.1 460
1240x1710x1720
RC3 2-4 80:1 >99.9 220/50 0.85-1.4 650
1555x1710x1720
RC4 3-6 80:1 >99.9 220/50 1-1.8 840 1870x1710x1720
RC5 4-8 80:1 >99.9 220/50 1.3-2.2 1030 2185x1710x1720
RC6 4.5-9 80:1 >99.9 220/50 1.7-2.8 1220 2500x1710x1720
RC7 5-10 80:1 >99.9 220/50 1.9-3.2 1350 2815x1710x1720
RC8 6-12 80:1 >99.9 220/50 2.2-3.7 1510 3130x1710x1740
RC10 7-16 80:1 >99.9 220/50 2.5-4.2 1850 3760x1710x1740
RC12 9-18 80:1 >99.9 220/50 2.9-4.8 2190 3935x1710x1740

Remarks: The above parameters are tested results based on Polished round
rice with the sigle chute 1-3T/H capacity. Actual capacity may vary
according to raw material contamination ratio.
