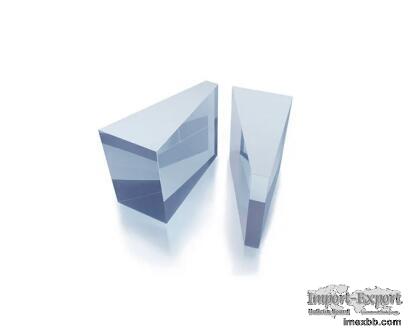

Anamorphic Prisms

Anamorphic prisms are utilized to rectify the asymmetric and elliptical beams
generated by laser diodes, resulting in nearly circular beam shapes. By
utilizing an anamorphic prism, the beam size can be altered along one axis
while remaining unaltered along the other axis, allowing for expansion,
reduction or reshaping of the beam.

Specifications of Anamorphic Prisms

Material: N-SF11, H-ZF13 Grade A optical Glass
Dimension Tolerance (mm): +/-0.2 (General), +0/-0.1 (High Precision)
Theta: q = 29°27'±30"
Flatness (per 25mm@633nm): λ/2(General), λ/10 (High Precision)
Clear Aperture: >80% (small size),>90%(large size)
Surface Quality: 60/40 (General), 10/5 (High Precision)
Bevel (mm): 0.1-0.5
Coating on input and output sides: MgF2 single layer on perpendicular
surface
or AR coating--Unpon Request

Note for Anamorphic Prisms

Anamorphic prism is available upon requirement.

Note: The prism is counted quantity at every piece. It shall be used as pair
(two pieces).

Minimum Order: 1 pieces
