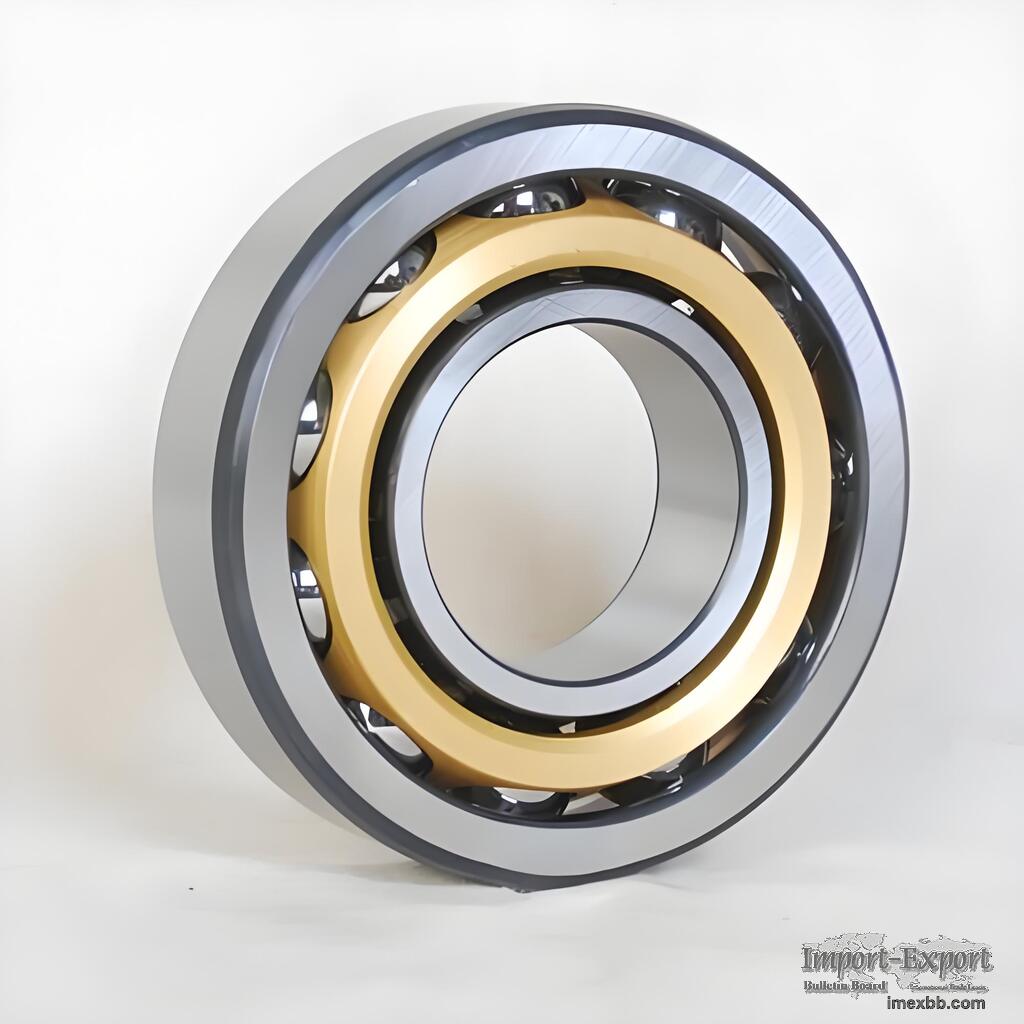

Angular Contact Ball Bearing

角接触球轴承的英文版：
Angular Contact Ball Bearing Product Description
Wuxi Maida Bearing Co., Ltd. MODIA Angular Contact Ball Bearings
Product Overview
Angular contact ball bearings feature a designed contact angle between the
rolling elements and raceways, enabling them to carry combined radial and axial
loads with high load capacity, high limiting speed and high running accuracy.
The angular contact ball bearings manufactured by Wuxi Maida Bearing Co., Ltd.
(registered trademark MODIA) are precision-ground from GCr15 high-carbon
chromium bearing steel, widely used in high-speed, precision and combined-load
applications.
Structural Features
Designed contact angle enables carrying both radial and single-direction axial
loads
Full range of contact angles available: 15° (C), 25° (AC), 30° (B), 40°,
etc., to suit different axial load requirements
Single-row angular contact ball bearings are typically used in pairs, mounted
back-to-back (DB), face-to-face (DF) or in tandem (DT) to meet different
rigidity and load direction requirements
High precision and high limiting speed, ideal for high-speed precision spindle
applications
Cages available in nylon, brass or steel to suit different speed and
temperature requirements
Main Technical Parameters
Material: GCr15 bearing steel (other materials available on request)
Precision grades: P0 / P6 / P5 (higher precision grades available on request)
Lubrication: grease / oil
Operating temperature: -40°C ~ +120°C (depending on cage and lubrication)
Applications
Machine tool spindles, high-speed motors, pumps, reducers, automotive wheel
hubs, compressors, centrifuges, printing machinery and other applications
requiring high speed, high precision and combined loads.
Quality & Assurance
Factory established in 2008, with a 4,000-square-meter modern production base
Registered trademark MODIA, products exported to Europe, Southeast Asia,
Kazakhstan and other overseas markets
Batch-by-batch inspection before shipment with strict quality control
OEM/ODM service and small-batch quick delivery available
