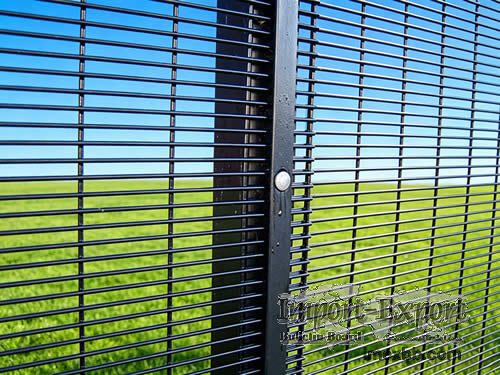

Anti Climb Fence

Anti Climb Fence is made from welded steel mesh with narrow openings to reduce
hand and foot hold points. It is also called 358 mesh fence, high security
fence, anti-climbing fence, or anti-cutting fence. Standard 358 mesh refers to
3″ x 0.5″ opening and 8 gauge wire, equal to about 76.2 x 12.7 mm opening
East of Weimin Street, Anping County, China
sales@bxwiremesh.com
+86-19134185927 +86-13184973926
WhatsApp: +86-19134185927
www.bxwiremesh.com
Anti Climb Fence is made from welded steel mesh with narrow openings to reduce
hand and foot hold points. It is also called 358 mesh fence, high security
fence, anti-climbing fence, or anti-cutting fence. Standard 358 mesh refers to
3″ x 0.5″ opening and 8 gauge wire, equal to about 76.2 x 12.7 mm opening
with around 4.0 mm wire. Panels are usually made from Q235 steel wire and used
with square or rectangular steel posts. Surface treatment can be hot dipped
galvanized, polyester powder coated, or PVC coated by order.

Specifications
Product Name: Anti Climb Fence, 358 mesh fence, high security welded mesh fence

Material: Q235 steel wire and steel posts

Standard 358 Mesh Opening: 12.7 x 76.2 mm, also called 0.5″ x 3″

Other Mesh Opening: 25 x 75 mm or special narrow opening by order

Panel Height: 1.8 m, 2.0 m, 2.4 m, 3.0 m, or made by order

Panel Width: 2.0 m, 2.2 m, 3.0 m, 4.0 m

Wire Diameter: 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm

Post Type: Square post or rectangular post

Square Post Size: 50 x 50 mm, 60 x 60 mm, 80 x 80 mm

Rectangular Post Size: 40 x 60 mm, 40 x 80 mm, 60 x 80 mm, 80 x 100 mm

Post Length: 2.0 m, 2.5 m, 3.0 m, or according to panel height and embedded
depth requirement

Post Installation: Embedded post or flanged base plate

Surface Treatment: Hot dipped galvanized, galvanized plus polyester powder
coated, or PVC coated by order

Common Color: Green, black, grey, or RAL color by order

Use Note: Small mesh opening helps reduce climbing points and makes cutting
harder with common tools. Final security level depends on wire diameter, panel
height, post size, clips, bolts, and installation method.
