Apollo AK Two-chuck Tube Laser Cutting Machine 1000w-6000w

Remcor technology is a global supplier for the turnkey fiber laser cutting lines,
which have around 18 years experiences, 5000 sets installations globally. No
matter what type what size and how thickness your sheet material is, we can
provide you the suitable equipment. Pipe Fiber laser cutting machine mainly been
applied in metal pipes and tubes fabrications, with the character of fast speed,
high precision or accuracy, environmental friendly, low power consumption, low
table cost, and low maintenance cost. which is widely applied in fast cutting
metal pipes of steel, stainless steel, carbon steel, aluminum, copper, galvanized
steel, titanium alloy, gold, silver and other material. OEM ODM services are
available.

Heavy Duty bed, apply the fully plate welding bed, with higher rigidity and
durable use.

Compared with two chuck clamping or traditional metal pipes cutter. Three chucks
equipment can realize the real zero tailing .processing details as the following
descriptio.

More flexible for pipe cutting processing especially for extra heavy duty pipes or
tubes, less swing or shake.Perfect accuracy and precision.

Heavy duty type load longer tailing material avaliable.

Apollo AK Two-chuck Tube Laser Cutting Machine 1000w-6000w Parameter Details

Fully Annealed Table
The bed body adapts the segmented rectangular tube welding bed with fully annealed
treatment at over 600⁰. After tempering, the strength, rigidity and stability are
guaranteed, the precision would be tested and debugged which can make sure the
precision can be maintained for a long time. The table is equipped with automatic
lubrication device, which ensure the moving parts operate in good condition and
improve the service life of guide rails, gears and rack.

Follower Support
The follower support device will be optional. The follower support is mainly to
assist in controlling the excessive deformation of cutting longer pipes (pipes
with smaller diameter), and the servo motor drives the up and down movement of the
pallet assembly. When the chuck moves to the corresponding position, the auxiliary
support automatically drops for avoidance.

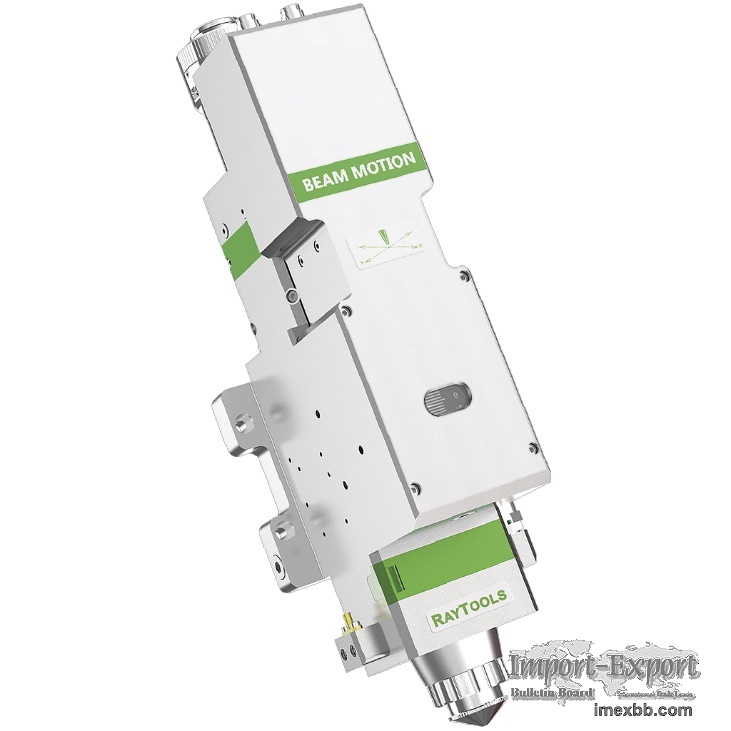

Smart Auto Focus Laser Head
Standard auto focus function, no need focus adjustment while changing sheet;
Automatic tracking and accurately adjusting the focus according to the material
thickness to ensure the best cutting effect of the whole board. Shorter
perforation time, better perforation quality, high-speed cutting, saving time.

Intelligent CNC Operating System

It simplifies complex CNC machine operation and integrates CAD, Nest and CAM
modules in one. From drawing, nesting to workpiece cutting all can be finished by
a few clicks on big IPAD Screen. Realize the intelligent diagnosis, multi-
threading operation, three-level perforation, laser energy control, adaptive edge-
finding, automatic corner acceleration and deceleration, flight cutting, switching
worktables, mechanical accuracy compensation etc.

Pneumatic Clamp Chucks
Pneumatic clamp design on both sides. The dual-chucks help reduce tube vibration
to a minimum, guaranteeing high accuracy in even complex tube configurations at
high cutting speed. Suitable for cutting a range of tube diameters from Ø20 mm to
Ø220 mm and various wall thicknesses.

Front chuck
tube laser cutting machine front chuck

Back chuck
tube laser cutting machine back chuck

Fractional Automatic Support Technology
Applies the intelligent tube support design, which can solve the deformation
problems in the process of long tube cutting.

Equipped with two sets of variable-diameter support structures, which are
automatically lifted by the cylinder to avoid the rear chuck in processing. When
processing profiles with different diameters, manually turn the variable-diameter
wheels to achieve fit and support for different-sized profiles. The variable-
diameter wheels It can be supported every two degrees of rotation to reduce the
diameter of the circumscribed circular tube by 2mm

We can offer kinds of 2000w laser for sale, and the 2kw fiber laser price is
reasonable, if you have needs to buy high quality 2kw fiber laser cutting machine
, please contact us.

As one of metal laser cutter manufacturers, we will do our best to meet all the
needs of customers.

Minimum Order: 3000 sets
