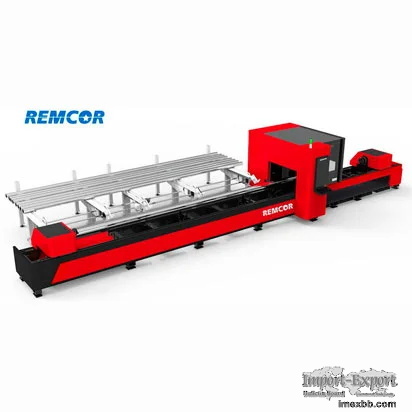

Apollo BK Three-chuck Tube Laser Cutting Machine 1000w-6000w

Remcor Apollo BK series three chuck tube lazer cutting machine can cut all types
of metal tubes, from mild steel to stainless and also non-ferrous metals. It is
also valid for cutting some reflective metals like aluminum, brass and copper,
etc. The thickness of the metal can be anywhere up to 30 mm. The diameters can be
up to Ø 350mm tubes. Can cut different shapes on the surface of square tubes, oval
tubes, U tubes or rectangular tubes or other special shape tube products. The most
outstanding feature of our BK system is that can realize the real Zero-tailing
cutting. And our automatic loading system freedom operator from the hard and heavy
pipe loading problem.

Apollo BK Three-chuck Tube Laser Cutting Machine 1000w-6000w Features
Different shapes & Different sizes
1. All kinds of pipe processing, no need to change clamping scheme.

2. Match the three-dimension head to solve all kinds of the pipe inflection
points.

3. CNC and CAM can calculate complex profile sections. Φ8-Φ440 mm range.

Max weight
600kgs load and unload maximum length up to 12M.

Raw material waste
Unique 3 chucks technology, zero tailing, high pipe utilization Average material
can reduce up to 30%.

Labor cost
Real time, high precision, fast troubleshooting servo motor control automatic and
semi load can be chosen.

Environment pollution
Dust collection box included full sealing chuck to prevent dust into chuck to have
a longer lifetime.

Low efficiency
1. Simple to operate, new upgraded system with servo motor to realize the high
automation and simplication.

2. High-precision chuck to make sure high speed, stability, high quality cutting.

3. Automatic loading and unloading to improve efficiency.

Apollo BK Three-chuck Tube Laser Cutting Machine 1000w-6000w Parameter Details

Fully Annealed Table
The bed body adapts the segmented rectangular tube welding bed with fully annealed
treatment at over 600⁰. After tempering, the strength, rigidity and stability are
guaranteed, the precision would be tested and debugged which can make sure the
precision can be maintained for a long time. The table is equipped with automatic
lubrication device, which ensure the moving parts operate in good condition and
improve the service life of guide rails, gears and rack.

Follower Support
The follower support device will be optional. The follower support is mainly to
assist in controlling the excessive deformation of cutting longer pipes (pipes
with smaller diameter), and the servo motor drives the up and down movement of the
pallet assembly. When the chuck moves to the corresponding position, the auxiliary
support automatically drops for avoidance.

Smart Auto Focus Laser Head
Standard auto focus function, no need focus adjustment while changing sheet;
Automatic tracking and accurately adjusting the focus according to the material
thickness to ensure the best cutting effect of the whole board. Shorter
perforation time, better perforation quality, high-speed cutting, saving time.

Intelligent CNC Operating System
tube laser cutting machine intelligent cnc operating system

It simplifies complex CNC machine operation and integrates CAD, Nest and CAM
modules in one. From drawing, nesting to workpiece cutting all can be finished by
a few clicks on big IPAD Screen. Realize the intelligent diagnosis, multi-
threading operation, three-level perforation, laser energy control, adaptive edge-
finding, automatic corner acceleration and deceleration, flight cutting, switching
worktables, mechanical accuracy compensation etc.

Pneumatic Clamp Chucks
Pneumatic clamp design on both sides. The dual-chucks help reduce tube vibration
to a minimum, guaranteeing high accuracy in even complex tube configurations at
high cutting speed. Suitable for cutting a range of tube diameters from Ø20 mm to
Ø220 mm and various wall thicknesses.

Front chuck
tube laser cutting machine front chuck

Back chuck
tube laser cutting machine back chuck

Fractional Automatic Support Technology
Applies the intelligent tube support design, which can solve the deformation
problems in the process of long tube cutting.

Equipped with two sets of variable-diameter support structures, which are
automatically lifted by the cylinder to avoid the rear chuck in processing. When
processing profiles with different diameters, manually turn the variable-diameter
wheels to achieve fit and support for different-sized profiles. The variable-
diameter wheels It can be supported every two degrees of rotation to reduce the
diameter of the circumscribed circular tube by 2mm

We can offer kinds of 3kw laser for sale, and the 3kw fiber laser price is
reasonable, if you have needs to buy high quality 3000w laser cutting machine ,
please contact us.

If you are looking for a reliable metal laser cutter factory, please choose us,
and we will be your best partner.

Minimum Order: 3000 sets
