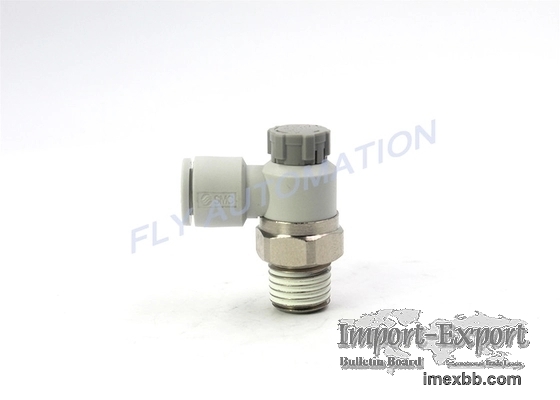

AS2201F-01-10S Speed Control Valve With One Touch Fitting Elbow Type Lot Of

AS2201F-01-10S Speed Control Valve With One-Touch Fitting Elbow Type Lot Of
5 SMC Type
FR double layer, FR Three-layer, FR soft nylon, Nylon, Soft nylon,
Polyurethane




Uses flame resistant resin as standard.(UL standard V-O)
Available with a restrictor (Made to order: -X214, -X21)
Made to Order
1. Lubricant: Vaseline
Ex.)AS1201-M5-F04-X12

2. Grease-free (Seal: Fluorine Coating)+Throttle Valve (without Check Valve)
Ex.)AS1201-M5-F04-X21
Note 1) Not particle-free
Note 2) This product is a restrictor without a check valve (no control
direction).Be
aware that all part numbers are for a meter-out type; there is no part
number for a meter-in type.


3. Throttle Valve (Without Check Valve)X214
Ex.) AS1201-M5-F04-X214
Note ) This product is a restrictor without a check valve (no control
direction).
Be aware that all part numbers are for a meter-out type; there is no part
number for a meter-in type.

Component Parts
No. Description Material Note
1 Body A Zinc alloy Chromate plated
2 Body B Brass Electroless nickel plated
3 Needle Brass Electroless nickel plated
4 Needle guide Brass (1)
5 Seat ring Brass (2)
6 Lock nut Steel (3) Meter-out Zinc chromate plated
Note 4)
Meter-in Black zinc chromate plated
7 Handle Brass Electroless nickel plated
8 Bushing PBT
9 Cassette PBT/Stainless steel
10 U-packing HNBR
11 Seal NBR
12 O-ring NBR
13 O-ring NBR
14 O-ring NBR
15 O-ring NBR
16 Gasket NBR/Stainless steel M5 port only
