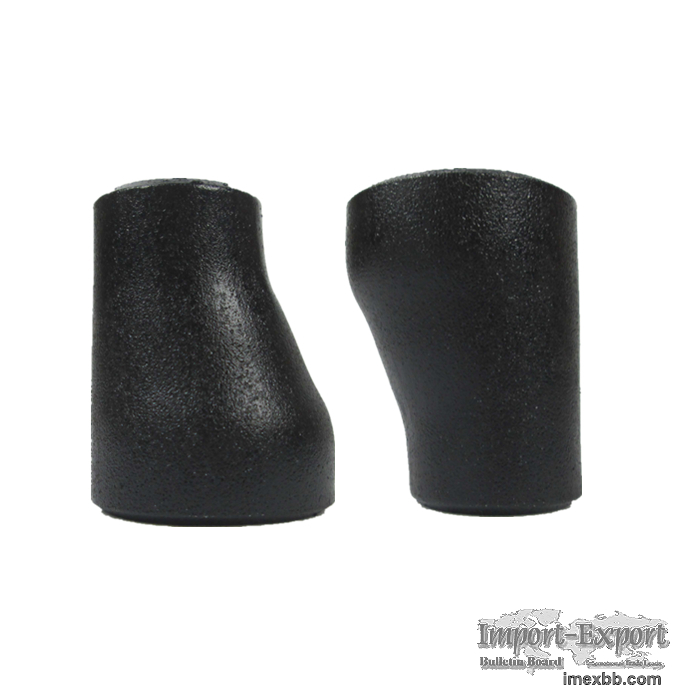

ASME B16.9 Buttweld pipe Eccentric Reducers

Fitting Type: Butt Weld Eccentric Reducer


Connections: Butt Weld Ends (ASME B16.25 Beveled)


Standards: ASME B16.9, GOST 17378


Material: ASTM A234 WPB Carbon Steel (Seamless), Stainless Steel, Alloy Steel
Butt Weld Eccentric Reducer A234 WPB Carbon Steel Pipe Fittings

A buttweld eccentric reducer is a type of pipe fitting used to connect two
pipes of different diameters while maintaining the same bottom line. Unlike
concentric reducers, which are symmetrical, an eccentric reducer has an edge
parallel to the connecting pipe, making it ideal for applications where air
pockets or drainage are concerned.



Key Specifications

Fitting Type: Butt Weld Eccentric Reducer


Connections: Butt Weld Ends (ASME B16.25 Beveled)


Standards: ASME B16.9, GOST 17378


Material: ASTM A234 WPB Carbon Steel (Seamless), Stainless Steel, Alloy Steel



Technical Specifications

Specification Details
Product Name Butt Weld Eccentric Reducer
Size Range 1/2″ to 48″ (DN15 – DN1200); Larger sizes available
Wall Thickness Sch 10, Sch 20, Sch 40 (STD), Sch 80 (XS), Sch 160, XXS (2mm-
32mm)
Manufacturing Seamless (up to 24″) & Welded (Large Diameter)
Surface Treatment Black Paint, Anti-rust Oil, Galvanized, or Pickled

Material Grades Available


Carbon Steel: ASTM A234 WPB (Standard for high-temp), ASTM A420 WPL6 (Low-
temp).

Stainless Steel: ASTM A403 WP304/304L, WP316/316L (Chemical/Water treatment).

Alloy Steel: ASTM A234 WP11, WP22, WP5, WP91 (High-pressure/High-temp).

Duplex Steel: ASTM A815 UNS S31803, S32205.


Comparison: Concentric vs. Eccentric Reducer

Concentric Reducer: Centerline remains consistent. Used when fluid flow is
relatively uniform and pressure drop is minimized.


Eccentric Reducer: One side is flat (maintains bottom/top alignment),
preventing cavitation. Ideal for constant flow or gravity feed.

Minimum Order: 5 tons
