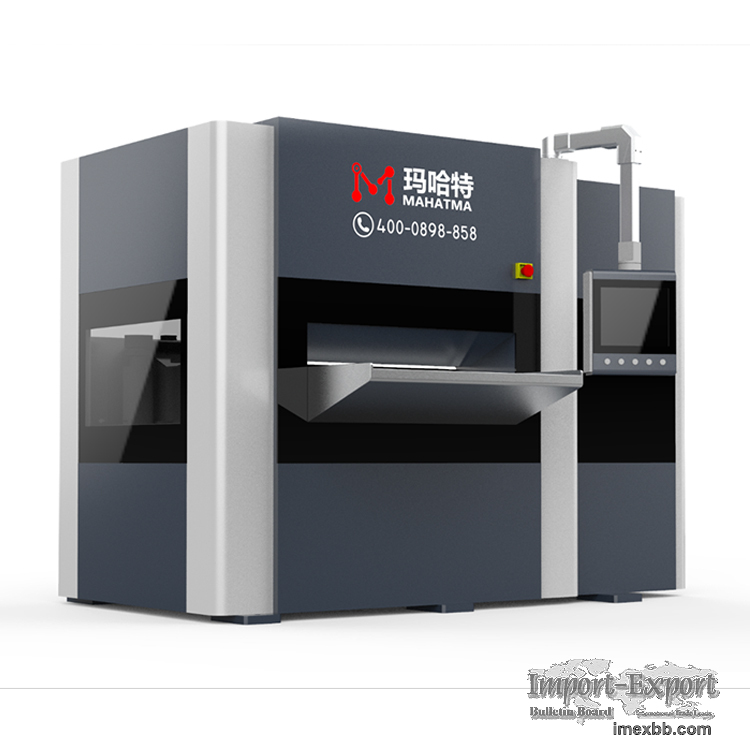

Automated CNC Leveling machine and straightening machine for Copper Sheet

MHT60 Series sheet metal CNC precision leveler parameter table
MachineModel: MHT60-600-19 MHT60-1000-19 MHT60-1300-19 MHT60-1600-19 MHT60-
2100-19
RollerDiameter: φ60mm
RollerNumber: 19
NominalLeveledWidth: 0-600mm 0-1000mm 0-1300mm 0-1600mm 0-2100mm
RatedPlateThickness(Q235):1.0~6.0mm
Max,PlateThickness(Q235):10mm
Applicable Object: Tape Coiling. Strip Steel, Sheet Metals,etc.

Function of Leveling machine

Under the condition of large elastic-plstic bending, no mater how
different the original bending degree, the CNC precision leveling machine uses
the "Bauschinger effect" of the material to bend the plate repeatedly,
gradually reduce the bending deflection, and gradually change the origina
curvature into a single curvature, and finally level it to achieve the leveling
accuracy required by the process.
After a series of alternating bending, the sheet metal is controlled by
the motor and the PLC to accurately control the lower pressure of each leveling
drum,elminating the internal stress, and fundamentally solving the
unsatisfactory leveling effect caused by the different stress in each part of
the sheet metal, thus achieving high precision leveling.

Minimum Order: 1 sets

Automated CNC Leveling machine and straightening machine for Copper Sheet
