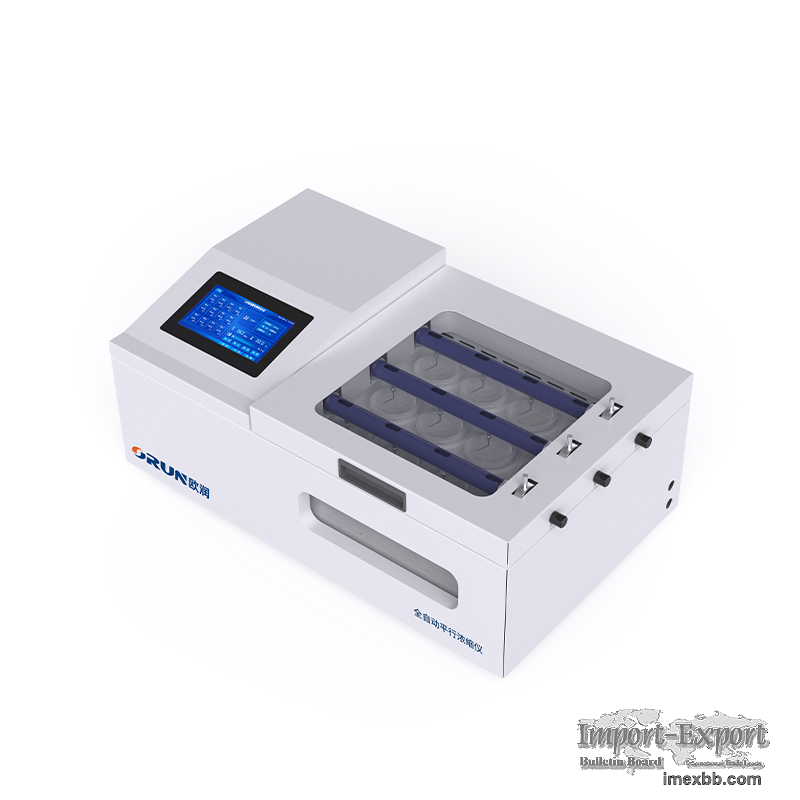

Automated Parallel Concentrator ORAS-12

The direction of the blow needle is adjustable. Nitrogen blowing needle front
and back tilt angle, left and right position can be adjusted. Needle can be
rotated and can be replaced.
Automated Parallel Concentrator ORAS-12 Technical Features
1. The direction of the blow needle is adjustable
Nitrogen blowing needle front and back tilt angle, left and right position can
be adjusted. Needle can be rotated and can be replaced.
2. Single channel single control
Each channel can be set separately, 12 channels can be set up different modes.
Open and close at any time without interference.
3. Automatic volume determination
Adopt high precision imported optical sensor, accurate volume 1mL or 0.5mL.
4. Build-in methods
Built-in six methods: you can set the method name, working mode (constant
volume, timing, timing + constant volume) and working time.
5. Thermostatic water bath
Intelligent AI-PID algorithm precise temperature control. Thermostatic water
bath with water level sensor, low water level automatic alarm.
6. Automatic water addition
When you click the button to water addition, the instrument automatically adds
water, stop automatically to the water level.
7. Open-lid suspension design
The Concentrator instrument is equipped with open cover detection function.
When the upper cover is detected to be open during normal operation, the
nitrogen will be automatically stopped and enter the pause mode.
