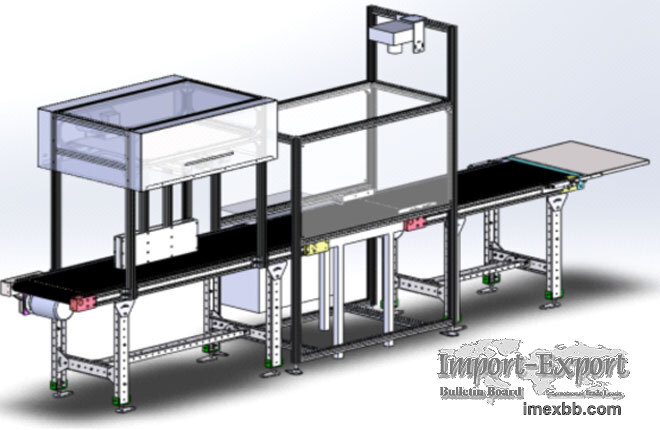

AUTOMATED SCANNING AND WEIGHING LINE(DWS)

Four indicators: Small footprint, wide application range, labor force
reducing, high efficiency

Automated scanning and weighing line: it's used at the inbound and outbound
ends of parcels on each sorting conveyor belt, with camera installed for
data identification and automated vulnerability scanning. The camera also
can read barcode, weigh the parcel through the automated weighing and
measure parcel dimension. Parcel scanning and weighing status (normal parcel
or abnormal parcel) will be known after the system interchanging information
with customer system. Normal parcels will directly pass through the
automatic scanning and weighing system, but abnormal parcels after automatic
weighing will be pushed aside by partition for sorting operator to check and
handle it.

The automated scanning and automated weighing system greatly reduces manual
checking workload, and improves sorting efficiency, also cuts down the time
and labor cost. Thus this package sorting machine plays an important role
and means a lot in parcel sorting.

Specification of Small Parcel DWS
No. Item name Parameter
1 Overall dimension Width4800mmXLength1300mmXHeight1000mm
2 Power supply Single phase220V Power1.43KW
3 Conveying line speed 0.6—1.0M/S（adjustable）
4 Efficiency Theoretical efficiency up to 6000pcs/hr，actual
efficiency 2000~3600pcs/hr
5 Barcode reader HIKVISION/DATALOGIC/SICK/COGNEX（customizable）< , br>6 Dynamic scale Weighing range： 10g – 6Kg Weighing precision：
±2g，±5g，±10g
Maximum parcel size：Length400mmxWidth320mmxHeight250mm
7 Dimension measuring Minimum parcel size： Length100mm xWidth60mm
xHeight1mm
Measuring precision：±10mm(HIKVISION）/ ± 5mm(datalogic/SICK)
Specification of Large Parcel DWS
No. Item name Parameter
1 Overall dimension Width4000mmXLength1300mmXHeight1500mm，angle
14 （customizable according to actual need）（Optional removing device, push
plate, turntable, transfer conveyor can be added, or coordinating with
sorter module）
2 Power supply 3phase380V Power4.1KW
3 Conveying line speed 0.6——1.5M/S（Adjustable） Geared motor ：
SEW 1.1KW/1.5KW
4 Efficiency 1800~3600pcs/hr（customizable）
5 Barcode reader HIKVISION/DATALOGIC/SICK/COGNEX（customizable）< , br>6 Plane dynamic scale Weighing range： 300g – 60Kg Weighing
precision：±10g，±20g，±60g（customizab , le）
Maximum parcel size：Length1000mmxWidth700mmxHeight700mm
7 Dimension measuring Minimum parcel size： Length200mm
xWidth100mm xHeight100 mm
Measuring precision：±10mm(HIKVISION）/ ± 5mm(datalogic/SICK)
（customizable）

Advantages of Automated Scanning and Weighing Line(DWS)
Linear design, compact structure, small footprint, much space saving
Wide application range, applicable for various goods with different sizes,
shapes and natures, lower than 10kg, including very small and thin ones
Extremely low running noise
Low operation and maintenance cost. And this materials handling system is
easy and safe to operate.
Application Industries of Small Parcel DWS
Cross-border e-commerce industry
Express industry
Postal industry


Application Scenarios of Small Parcel DWS
The fuction of small parcel DWS is similar with quick sorter. Small parcel
DWS is often applied in cross-border e-commerce, postal small packet
service, warehouse inbound/outbound auto barcode reading, weighing and
dimension measuring.


Application Industries of Large Parcel DWS
E-commerce industry

Express industry

Cosmetics industry

Application Scenarios of Large Parcel DWS
Applicable for small packet in e-commerce express industry, warehouse
inbound/outbound auto barcode reading, weighing and dimension measuring.

Lisen Automation group is a national asrs companies and material handling
company, we provide food production automation, automation in food industry
and etc. Want to know more? Please contact us.
