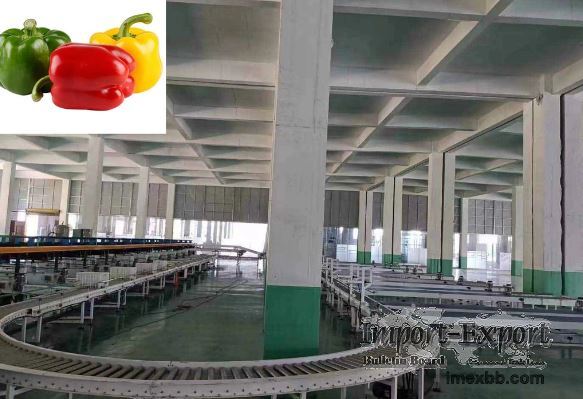

Automatic 380V Vegetable Sorting Machine Bell Pepper Grading Equipment

Product introduction:

According to the difference in the optical properties of materials, the
photoelectric detection technology is used to automatically sort out the damage
and size of the fruit and vegetable materials, and it can also detect the sugar
content in the sorting fruits and vegetables.

Sorting item: Bell Pepper

Sorting standard

Raw Bell Pepper Big Bell Pepper Medium Bell Pepper Small Bell Pepper
Rotten Bell Pepper
Parameters

model channel
capacity

(T/H)

voltage

(V , /Hz)

power

(KW)

size(length*W , idth*height)
ZG02 2 4-6 380/50 15.36 22690*1950*2280


The date is for example as the apple, actual effect would be according to your
raw materi

Model function
voltage

(V/Hz)

power

(KW) ,

size(length*Width*height)
Water sterilizing system Soft cleaning and sterilizing system 380/50
3.05 5000*1280*1135
Wind drying system surface drying, no destroy to the fruit characters
380/50 3.75 5000*1000*1750
Dry switch feeding Dry feeding 380/50 2.5 4600*1000*980
Export packing line Human packing 380/50 7.53 6000*900*1400
Empty box transportation Fruit box supply 380/50 0.6
10030*530*300
