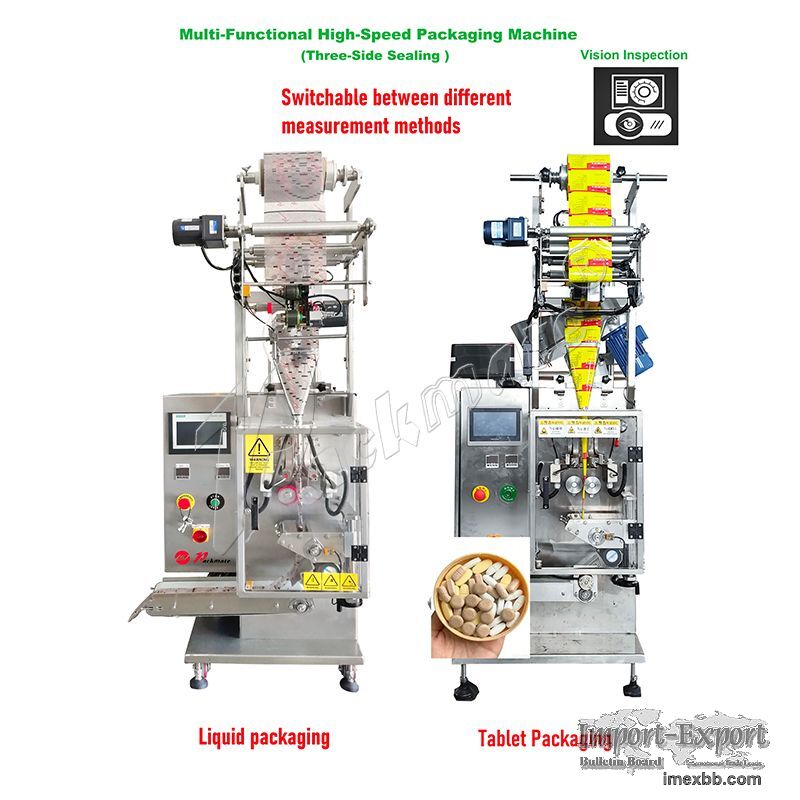

Automatic High Speeed Three-Side Sealing Food Packaging Equipment

Automatic High Speeed Three-Side Sealing Food Packaging Equipment
Worldwide Best-selling Automatic High Speeed Three-Side Sealing Food Packaging
Equipment is a multi-functional three-side sealing packaging machine,
adaptable to different metering methods. It can meet the three-side sealing
needs of powders, liquids, granules, tablets, and all other products; only the
metering method needs to be changed. The packaging method utilizes a three-side
sealing structure design, and the speed can reach 100 cuts/minute.
Advanced human-machine interface, 7-inch touchscreen operation, PLC program
control, with Chinese and English operating languages, error prompts, and self-
diagnostic functions.
Electrical components from Schneider or OMRON.
Precise PID temperature control.
Stepper motor longitudinal sealing bag puller structure (straight mesh or
rubber-coated puller optional).
Coding adjustment method: rack and pinion.
Photoelectric adjustment method: guide post (screw-fixed).
Standard mechanical piston pump (optional replacements: magnetic pump, gear
pump, high-pressure pump, etc., depending on material characteristics).
Elephant trunk forming device (low cost of specification replacement, easy
operation).
Can be made into three-side seal and four-side seal, and related bag shapes can
be achieved by changing parts.
Rotary cutter structure (independent cutter, hand-cranked screw adjustment of
cutter position).
New design style, welded frame.
Main unit and material contact are made of 304 stainless steel, frame exterior
has a brushed finish.
Acrylic protective cover with safety door detection switch and safety label.
More information: https://www.pack-mate.com/
