Automatic LHD Electric 29 Passenger Shuttles Wheelbase 4200mm

Product Description

8m 29 Passenger Seats ZEV BUS for Sale



Description:



It adopts high-efficiency permanent magnet synchronous electric drive system
and lithium iron phosphate power battery, which has the advantages of safety,
reliability, high efficiency and energy saving, and intelligent control.Through
the intelligent management of vehicle control, motor drive, and energy
management,as well as the precise optimization of control strategies, the
vehicle's power, economy and comfort can reach the best balance.



Specs



Overall specs Passenger capacity 61 (14-29 seats) Motor specs
Manufacturer ZEV
Vehicle size (mm) 8095*2400*3150 Model ZEV
Wheel base (mm) 4200 Position rear
Front/Rear overhang 1865/2030 Motor type PMSM
Front/Rear tread 1992/1802 Max.power(kw/rpm) 170
Approach/Departure(º) 8/10 Max. torque (N.m/rpm) 1700
Max. Grade-ability(%) ≥15% Displacement(L) --
Top speed (km/h) 69km/h Fuel Electric
Curb weight (kg) 7400 Emission --
Gross weight (kg) 13700
Battery 198.4 kwh,LiFePo4
Cruising range ≥250km
Charging time Within 2h
Item Specs Remarks
Chassis Front axle DANA
Rear axle DANA
Transmission Auto transmission
Suspension Leaf spring
Steering Integral power steering, elector-hydraulic power steering
Braking Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
Tyre 265/70R19.5 14PR steel rim Tubeless radial tire
Battery Maintenance-free type
electronics AC 20000kcal/h
Defroster Electric
Instrument CAN Bus Line
Audio-system MP5
Lights Front and rear combination light. Fog light.
Monitoring system CCTV system with 6 cameras
Route board Front, rear and side LED type
Bus facilities Body Cathode coating.
Passenger door Front aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-
shield
Passenger seat 14-29 plastic city bus seats
Interior
PVC duct, PVC composite side plate.

Punched aluminum-plastic roof plate.


Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons,
Safety hammer with alarm function,Electronic clock,Manual fire distinguisher
,Auto fire distinguisher in battery cabin,USB connector at driver area,
connector for payment machine,WIFI , Travelling record with GPS

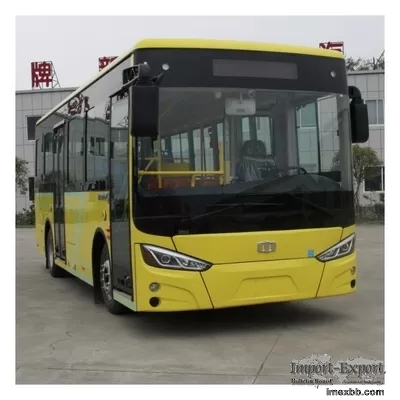

Pictures for reference


Automatic LHD Electric 29 Passenger Shuttles Wheelbase 4200mm 0Automatic LHD
Electric 29 Passenger Shuttles Wheelbase 4200mm 1

FAQ:

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing
and marketing. From its foundation in 2000’s, ZEV’s culture of continuous
innovation has made it a leading manufacture in China. Now we have developed a
series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will
always be a model that suits you the most.



Q: What can we offer?

A: 1. As a public transportation provider, we can not only provide you buses
and coaches but also a comprehensive solution for a better travel experience.

Buses and coaches CBU, KD kit, Chassis and Body frames
Spare parts including various charger for EV


Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .



Q: What’s the delivery time?

A: Normally 20-35 workdays.



Q: Why choose us?

A: We guarantee professional service, competitive price with high quality
vehicles.
