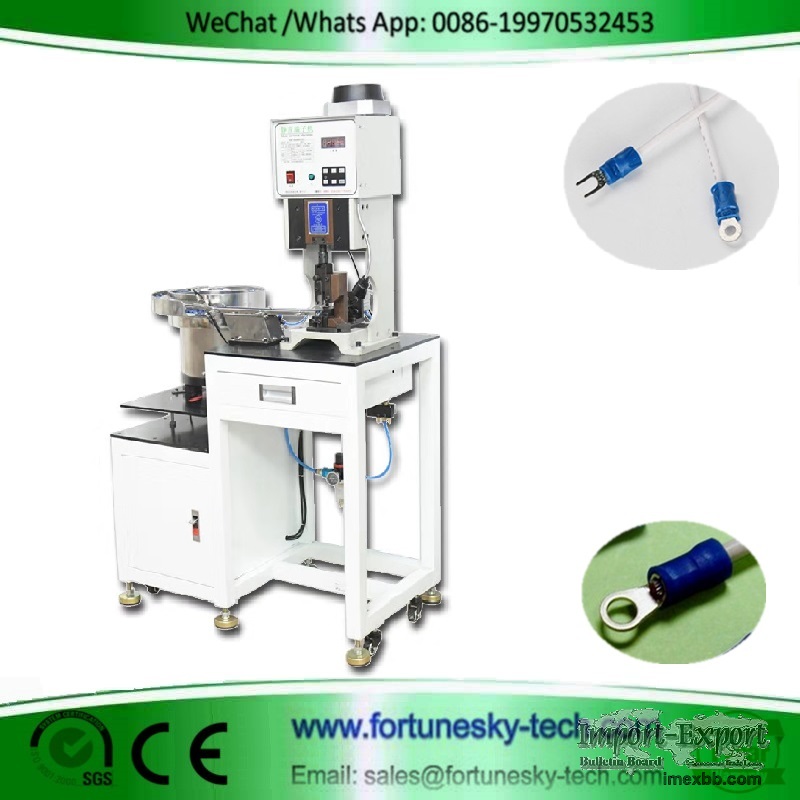

Automatic Loose Terminal Rail Feed Wire Crimping Machine

This Vibrator Bowl Insulated Crimp Ring Terminal Wire Terminating Machine,
using high-tech frequency conversion technology, precise electronic
positioning, when pressing, the motor working noise is smaller than the
traditional terminal machine, and power saving, mode adjustment is more
convenient and fast, to avoid common faults such as traditional terminal
clutch, electromagnet and so on.
1. Adopt the latest intelligent digital voltage regulation and vibration
feeding controller, and add PLC program.
2. Cylinder and die are used to feed at the same time, so that the feeding
is more accurate, faster, better stability, and basically no stuffing
phenomenon.
3. Improving the design of slope track, speeding up the transmission of
terminals, the stuffing basically disappeared.
4. 2T ultra-silent wire crimping machine, no noise, safer employees, using
card-type mold, easy to unload.
5. Using infrared control, when the track is full of terminals, the
vibrating disc stops automatically.
6. Replacing expensive continuous terminals and adopting economical bulk
terminals can save cost.
7. It is the best choice for small and medium-sized enterprises to replace
singles electric small punches, improve the safety of workers and run at a
speed comparable to that of connecting terminals.
Power Source: AC220V/50Hz
Power: Motor 250W / Vibrator bowl: 120W
Net Weight: 130kg
Dimension: 450x860x1360mm
Crimping: 2Ton
Slide Stroke: 30mm
Crimping Frequency: 120times per hour
Closure Height: 26mm
Closure Height Adjust: 10mm
Appropriate Terminal Type: Loose terminal
Production: 7200pcs/hour

Minimum Order: 1 pieces

Automatic Loose Terminal Rail Feed Wire Crimping Machine
