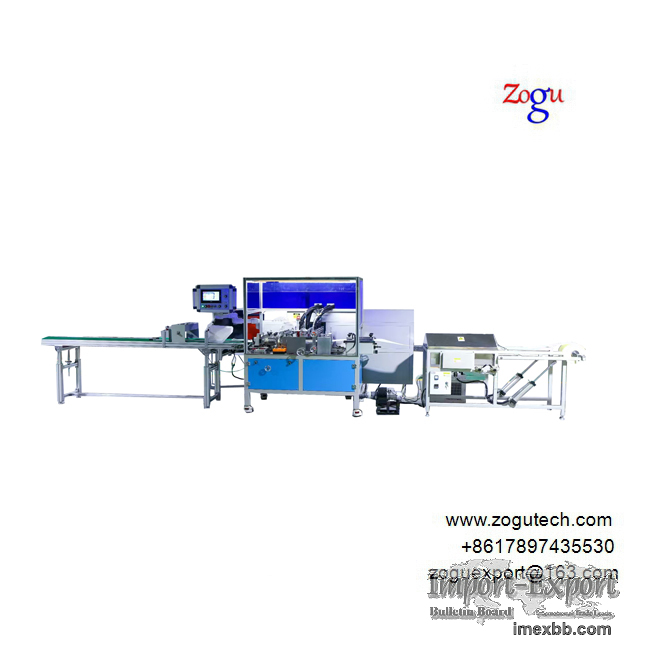

Automatic panel air filter paper pleating machine with laser cutter

Automatic panel air filter paper pleating machine with laser cutter

1. It can produce irregular paper blocks.

2. It can produce trapezoidal paper blocks (one end is wide and the other is
narrow).

3. S-shaped paper blocks can be produced.

4. It can produce super large beveled paper block.

5. It can produce elliptical paper blocks on one side and beveled paper on the
other.

6. It can produce double round paper blocks with manual switching mechanism.

7. It can produce double straight edge finger blocks.

8. It can produce square paper blocks, two at a time, and the efficiency is
increased by 2 times.

9. During the pleating process, the extra corners can be cut online to cut four
corners at the same time, and hot melt glue is applied during the pleating process.

10. It can store 200 sets of process parameters, which is convenient for calling
during production.

11. It has functions such as paper stop and glue stop, paper end glue stop, paper
finish glue stop , etc.

12. With laser water cooling protection, low air pressure protection, voltage
display, current display.

13. The paper feeding wheel is pneumatically driven, which can realize automatic
glue avoidance function.

14. The speed of the servo conveyor belt automatically matches the host machine,
and the speed can also be set manually with a resolution of 2%.

15. The automatic glue-changing function can control the glue output of straight
edge and bevel angle hot melt glue, so that the bevel angle hot melt glue can
increase more than the straight edge to avoid air leakage.

16. The pleating speed is automatically variable, and the bevel edge speed and
straight edge speed are automatically changed and set independently to improve
efficiency.

www.zogutech.com
zoguexp , ort@163.com
+8617897435530

Minimum Order: 1 sets
