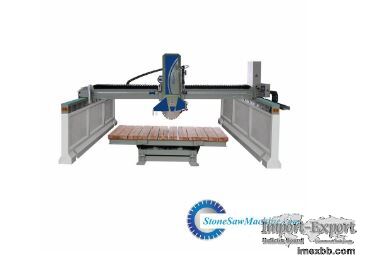

Automatic Stone Cutting Machine For Marble Granite

Introduce of Automatic Stone Cutting Machine for Marble Granite
This machine adopts PLC programmable control system, man-machine integration of
touch screen operation interface, with high precision rotary encoder and the
infrared liner, cutting left and right adopts the frequency converter to
control the speed, speed can be adjusted according to the stone material, lift
up and down adopts hydraulic, the high speed moving parts adopt imported high
quality spare parts, so it cutting with high efficiency, high cutting
precision, high stability, easy and flexible operation etc, especially suitable
for the high value of large specifications of granite, marble slabs cutting.

Machine Specifications
YPE MCQJ-450
Blade diameter mm Φ350-Φ500
Max.working dimensions(LxWxH) mm 3200x3200x100
Table size(LxW) mm 3200x2000
Workbench tilting degree n° 0°-85°
Workbench rotating degree n° 0°-90°+45°/0°-45°-90°-360°
Main motor power kw 15
Gross power kw 20.2
Water consumption m3/h 3.5
Trolley dimension(LxWxH) mm 6000x5000x2600
The total weight kg 5200
