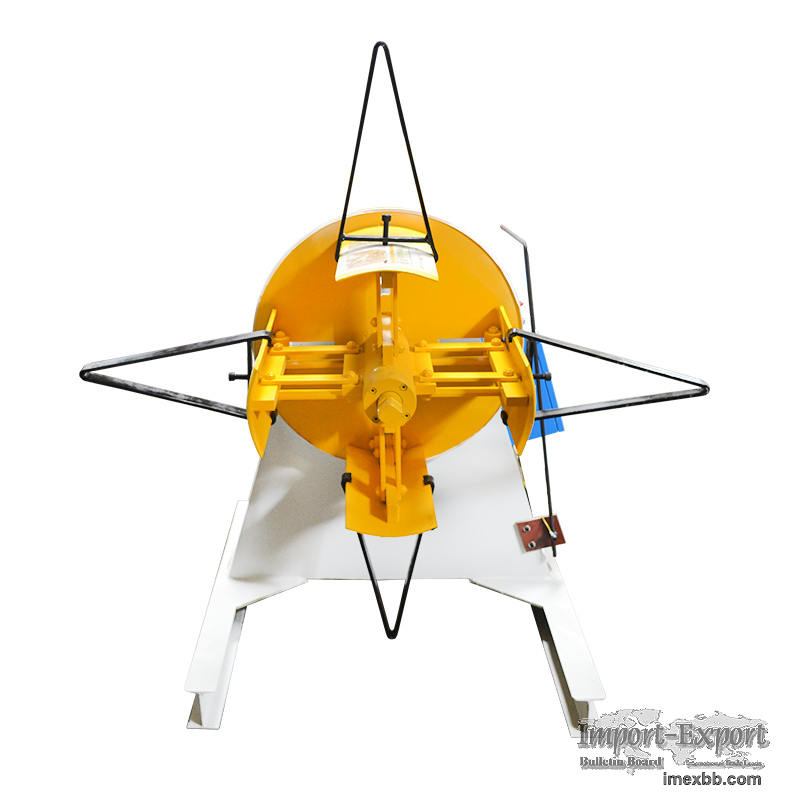

Automatic uncoiling machine MT series decoiler machine

Decoiler machine capacity ranging：Maximum load weight 30ton, Maximum width
1800mm
The design of our reels incorporates a unique "bearing tube" with dual cup and
cone Timken bearings to the mandrel and a heavy duty cabinet base. Both
motorized and pull-off type reels are available, depending on the application.
Single-end configurations are provided as standard, and Double-ended
configurations can be provided to optimize production efficiency by lowering
the coil changeover time. Most models are available as Traveling Reels that can
be combined with automatic centering functions.

Custom engineering can be provided to meet any application demands.

Rack section
1. The whole frame is welded design，adopt the second protection welder for
welding, first vertical fillet welding, then flat fillet welding, weld first
short weld, then long weld, ensure tight weld, improve quality.
2. All plates are cut by laser plasma with high precision.
3. All parts are processed by numerical control and CNC, good
interchangeability of equipment.
4. The overall structure is simple, general technical workers can assemble and
replace equipment parts, convenient and fast ,greatly reduce the maintenance
cost.
Main shaft、tile part
1. The tiles are made of A3 material, after cutting ,flash processing.remiling
tile bevel, bending, drilling and milling groove procedures.
2. The nuts needed to fix each part are all non-slip nuts to prevent them from
failing off during operation and from damaging the machine or injuring people.
3. Spindle screw and screw sleeve are made of fine machining to ensure the
smoothness of adjusting inner and outer diameter of the machine and avoid
unnecessary machine stop for repairs.

 Power section
1. Adopt model 80 worm gear vertical reducer ,use the speed converter of gear ,
reduce the rotation number of motor to desired rotation number ,and get the
mechanism with larger torque.
2. Adopt vertical motor, low vibration, low noise, fixed rotor part adopts pure
copper coil, life is 10 times of ordinary coil, both ends are equipped with
ball bearing ,low friction, low temperature.
Electric control box
1. Adopt silver alloy relay ,full copper coil ,flame retardant safety base,
long lasting and durable.
2. Adopt safety protection adjustment circuit time delay ,silver alloy contact
,various and dial, satisfied different delay ranges.
3. The switch adopts sliding contact ,with self-cleaning function , normally
open and normally closed contact adopts separate bonding structure, can work
with different poles, equipped with anti-rotation positioning and stop loose
mounting gasket.
4. Adopt self-duplex flat button, the force is light, the key range is
moderate, the building block type combination structure. The contact is made
up of keto-base composite points with strong conductivity and large current,
with a life span of up to 1 million times.

 Non-standard custom one
1. The material width of the equipment can be made according to requirements,
Maximum can reach 1800mm.
2. Decoiler inner diameter and outer diameter can be made according t
requirements, maximum can reach 1500mm.
3. Pressing arm can be added to prevent material loose, and can also add
frequency inverter to control speed.
4. It can add hydraulic station, used for hydraulic expansion, easy to operate.
