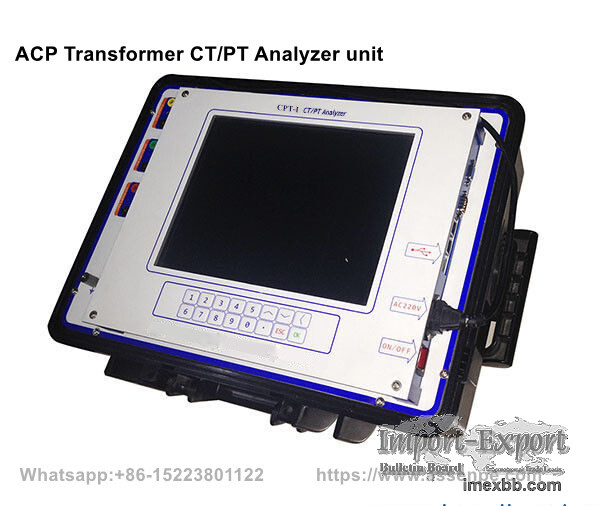

Automatically type Electric Current Transformer Tester,CT PT Analzyer

Introduction:
ACP Electric Current Transformer Tester is used to measure all kinds of current
transformer and voltage transformer. It can calculate the ratio errors and
phase angle errors of current transformer and voltage transformer at rated
burden and working burden in one time test. The tester can automatically
evaluate the test results according to the selected standard to determine
whether the transformer is qualified.

Functions:
1.Injects low test signals into secondary side of the CT 2.Determines the CT's
equivalent circuit parameters 3.Identifies all relevant CT performance
parameters 4.Displays all relevant parameters of the CT and its accuracy at
different currents and burdens 5.Evaluates the CT according to the selected
standard 6.Determines unknown CT nameplate parameters 7.Demagnetizes the CT
after the test.
Range of measurements Ratio and phase accuracy Winding resistance Excitation
characteristics (knee points) Composite error (ALF, ALFi, FS, FSi, Vb) Burden
impedance Transient CT classes and parameters (TPS, TPX, TPY and TPZ type CTs)
Transient dimensioning factor (Ktd) If missing/unknown: CT type, class, ratio,
knee point, power factor, nominal burden, operating burden, primary and
secondary winding resistance Remanence and residual magnetism


Specifications:
No. Item Name ACP Current Transformer and Voltage Transformer CT PT
Analyzer
1 Test standards IEC60044-1, IEC60044-6, GB1208, GB16847, C57.13
2 Power supply AC220V±10%,50Hz/60Hz±10%
3 Power output 0.1~125V (AC)
4 Current output 0.001~5A(RMS)
5 Power output 300VA
6 Max. knee voltage measurement 45kv
7 Current measurement range 0~10A (automatically change range in
0.1/0.4/2/10A)
8 Current measurement error <±0.1%+0.01%FS
9 Voltage measurement range 0~200 V (automatically change range in
1V/10V/70V/200V)
10 Voltage measurement error < ±0.1%+0.01%FS
11 Turns ratio measurement range 1~30000;
1~2000 error<0.05%;
2000~5000 error>0.1%;
5000~35000 error<0.2%
12 Phase measurement error: ±2min,resolution：0.01min
13 Coil resistance measurement Range: 0~8kΩ(automatically change
range in 2ohm /20ohm /80ohm/800ohm/8kohm)
Error< 0.2%RDG+0.02%FS
Maximum resolution: 0.1mΩ
14 Temperature measurement -50~100 Celsius degree, error<3 Celsius degree
15 CT Secondary burden Range 0-160ohm (automatically change range in
2ohm/ 20ohm/80ohm/160ohm)
Error<0.2%RDG+0.02%FS
Maximum resolution 0.001ohm
16 PT Secondary burden Range 0-80kohm (automatically change range in
800ohm / 8kohm /80kohm)
Error<0.2%RDG+0.02%FS
Maximum resolution: 0.1ohm
17 PT ratio measurement Range: 1~30000
1~5000 error<0.2%
5000~30000 error<0.5%
18 Saved data groups >1000groups
19 Work condition Temperature: -10℃-50℃, moist: ≤90%
20 Size 485mm*356mm*183mm
21 Weight <15Kg
