Automobile electronically controlled gasoline engine training table

1 Product parameters

Product name automobile electronically controlled gasoline engine training
Product size:1500×1000×1800mm(L×W×H)
Weight about 300kg
Fuel Gasoline

2. Technical specifications
(1) Product introduction
The training table is composed of Toyota Land Cruiser electronically controlled
gasoline engine assembly, the training table can start the engine, running
experiments, the teacher combined with the training table teaching panel to
teach the engine control principle to train students to analyze and solve the
actual failure of the ability to form an organic combination of theory and
practice; applicable to secondary and higher vocational and technical schools
and automotive training institutions of automotive engine construction and
maintenance training.
It can meet the teaching needs of different levels of schools on the structural
composition, working principle, fault setting and diagnosis of electronically
controlled gasoline engines.

(2) Structural composition
Engine assembly, engine electronic control unit, instrumentation, ignition
switch, fault setting system, oil pressure gauge, vacuum gauge, fuel tank,
battery, diagnostic socket, heat dissipation system (water tank, fan, fan
cover, upper and lower water pipe), exhaust system, and the engine computer pin
one-to-one correspondence of the signal detection area, LED lights, signal
meter, safety cover, removable table, etc.

(3) Functional characteristics
1. The engine works normally, real response to the structural composition and
working process of the EFI gasoline engine.
2. Engine training table with dynamic operation and display function, the
original instrument, digital table real-time display dynamic and static engine
signal parameters.
3. Assembled with LED lights to display the working state of injector pulse and
ignition pulse-related components.
4. Teaching panel installed with a complete color engine electronic control
system circuit working principle diagram, ECU terminal function, injection
system LED indication, etc., to facilitate the teacher to explain the system
knowledge more intuitively.
5. The training table is installed with a diagnostic socket, which can be
connected with a special or general-purpose car decoder to read fault codes,
clear fault codes, read data streams and other engine self-diagnostic functions
for the engine electronic control system.
6. Self-diagnostic functions: dynamic and static data stream reading, fault
code reading, waveform analysis, action test of executive components and other
7. Electronic control system detection function: the teaching panel is
installed with a computer lead terminal, which can use multimeter and
oscilloscope to detect each sensor and actuator resistance, voltage, frequency,
8. The training table is equipped with a fault setting assessment device
suitable for teaching, which can set one and more common faults to meet the
assessment requirements of vocational skills teaching.
9. The training table measurement panel is painted with colorful spray-painted
circuit diagrams, using 4mm thickness of high-strength aluminum plastic plate
spray-painted, with a large temperature difference, wear-resistant, moisture-
proof, anti-corrosion, not easy to deformation, long service life, bright
colors, not easy to fade and other characteristics.

Minimum Order: 1 sets

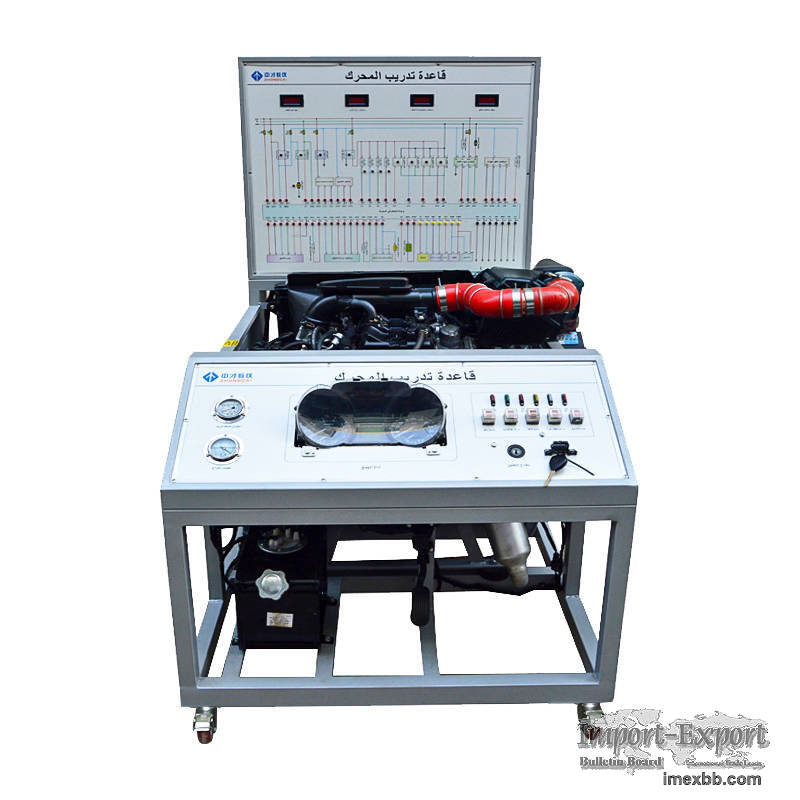

Automobile electronically controlled gasoline engine training table
