Automotive ABS/EBD/TCS system teaching board

Product Introduction
The equipment adopts the ABS/ASR body electronic stability system of the
original VW car as the basis, can simulate the working state of ABS/ESP system
during the operation of the car, easy to operate, safe and reliable.
Suitable for higher vocational and technical colleges, general education
colleges and training institutions on ABS/ESP body electronic stability system
and maintenance of the teaching needs of practical training.

Main configuration
The original ABS/ESP body electronic stability system, the original ABS/ASR
body electronic stability system computer, combined instrumentation, ABS/ESP
body electronic stability system operation of all relevant original
accessories, fault setting and troubleshooting system, the original circuit
schematic and testing terminals, diagnostic socket, governor, removable table,
with locking universal casters, etc.

Product features
1)The training system consists of an original and complete braking system,
which is equipped with disc brakes on the front axle and drum brakes on the
rear Thus both brake types are covered in one training system.
2) The brake is actuated by means of a brake pedal, which is connected to the
tandem brake cylinder via the brake booster.
3) The brake lines are led from the mechatronic ABS hydraulic unit with ASR
functionality to the individual brake calipers. In addition, the ABS control
unit with ASR functionality evaluates the signals from the four original wheel
speed sensors and regulates the brake pressure in the corresponding brake
4) The training table measurement panel is painted with colorful spray-painted
circuit diagrams, which is made of 4mm thick high-strength aluminum plastic
plate spray-painted with the characteristics of resistance to large temperature
differences, wear-resisting, moisture-proof, anti-corrosion, not easy to
deformation, long service life, bright colors and not easy to fade.
5) the operating panel of the training table is installed with automotive
instrumentation, pressure gauge, real-time display of speed, brake pressure and
other parameter changes. Diagnostic seat is installed, which can be connected
with special or general-purpose car decoder to read fault codes, clear fault
codes, read data stream and other self-diagnostic functions for ABS/ASR body
electronic stability system.
6) There are test terminals installed on the panel of the training bench, which
can directly detect the electrical signals of sensors, actuators and ABS/ESP
body electronic stability control unit pins on the panel, such as resistance,
voltage, current, frequency signals, etc.
7) The training table is seamlessly welded with steel frame structure, and the
metal surface is treated with high-temperature spraying, with solid paint,
bright color, scratch resistance, corrosion resistance, long life, etc. The
table is equipped with self-locking casters, which is flexible, safe, reliable
and durable.

Technical parameters
1) Size: 1500×1000×1800mm (L×W×H)
2) Power supply: three-phase four-wire (three-phase five-wire 380V ± 10%
3) input power; AC 220V ± 10% 50Hz
4) working power; DC 12V

Minimum Order: 1 sets

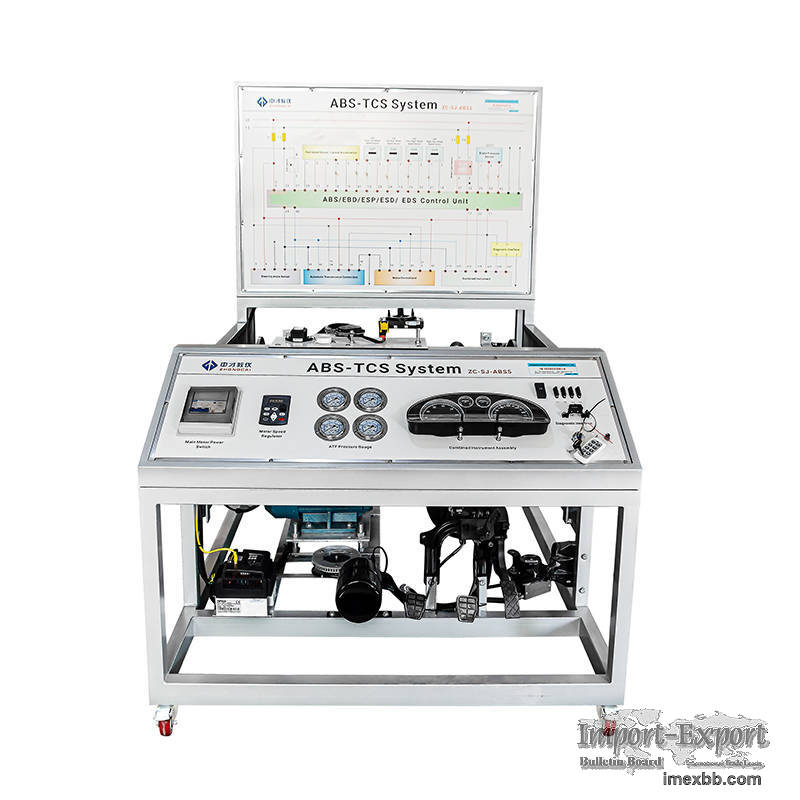

Automotive ABS/EBD/TCS system teaching board
