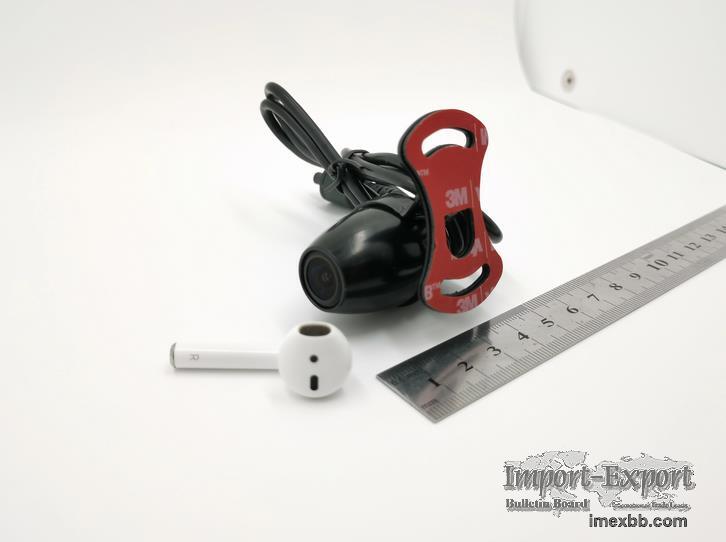

Automotive Night Vision Camera for Motorcycle

Automotive cameras designed for motorcycles serve a variety of purposes,
ranging from enhancing safety and visibility to capturing memorable riding
experiences. Transform your journey on the road with CK Vision, your trusted
automotive camera suppliers. Discover the revolutionary auto night vision
systems and cameras tailored for motorcycles.

Performance Parameter of auto night vision camera for Motorcycle
Model CK-MOT1-1080-V2.0 REMARKS
Image Sensor IMX307
Image Sensor Size 1/2.8
Effective Pixels 1920*1080
Pixel size 2.9μm x 2.9μm
Optical distortion ≤-1.2%
Image sensor Data output AHD
Maximum Frame Rates and Resolution Full resolution of 1920 X 1080@30fps
SNR max 45dB
Dynamic range 95dB
Min. Illumination ≥0.001LUX at F.No2.0 NO LED
Interface AHD with connector of BMW
Power requirements 5V / 12V
Storage temperature -30℃ to 105℃
operating temperature -20℃ to 85℃
Power Consumption Max 300mW
LED IR-850 NO, but could be customized
OS All automotive systems
Lens size M12 diameter；17mm TTL
Lens Construction 5G + IR
F/NO 2.0
EFL 2.26mm
FOV D:127° H:103° V:78° ±3° Customizable
Shooting distance Fixed Focus， 50cm-infinity


Features of Automotive Night Vision Camera for Motorcycle
Rider Safety and Awareness: automotive night vision camera can record the road
ahead, helping riders maintain awareness of their surroundings and capture
evidence in case of accidents or incidents.

Accident Documentation: In the event of a collision or close call, a camera can
provide crucial video evidence that can be used for insurance claims or legal
purposes.

Front and Rear Views: Many camera night vision auto offer both front and rear-
facing cameras, ensuring comprehensive coverage of the road and potential
hazards from multiple angles.

Vlogging and Content Creation: Motorcycle enthusiasts often use cameras to
capture their rides and create vlogs or videos to share their experiences with
others, this motorcycle camera offer live streaming capabilities, allowing
riders to share their rides in real-time on social media platforms.

Dashcam Features: Similar to the automotive dash cam, this automotive night
vision camera can have features like loop recording, automatic incident
detection.

Waterproof and Weather Resistance: Motorcycle cameras are designed to withstand
exposure to the elements, including rain, wind, and dust, ensuring durability
during rides.

Wide-Angle Lenses: Many cameras offer wide-angle lenses to capture a broader
view of the road, enhancing situational awareness.

Mounting Options: Motorcycle cameras come with various mounting options to
attach them securely to the bike, helmet, or rider's gear.

Night Vision and Low-Light Performance: Our motorcycle cameras include night
vision or low-light capabilities, enhancing visibility during nighttime or low-
light rides.

Parking Mode: Similar to automotive dashcams, some motorcycle cameras have a
parking mode feature that records motion or incidents even when the bike is
parked.

Integration with Helmets: If you want, CK Vision can make the cameras be
integrated into specially designed helmets, offering a unique perspective and
capturing the rider's point of view.

Safety Feedback: Some cameras may provide audio or visual alerts to warn riders
about potential dangers or distractions.

Applications: integrated in the motorcycles, be used as ADAS or DMS;

Mass production capacity: 80k/month

Customization: support, any kind of FPC or PCB shape, change the Lens size,
customizable FOV, housing, and so on.

There are many camera lens manufacturing companies, but we are one of the best
choices for you.

Minimum Order: 1 pieces
