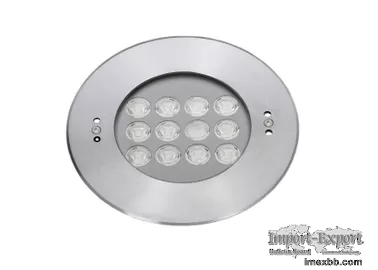

B4ZB1257 B4ZB1218 12 * 2W or 3W Wall Recessed LED Swimming Pool Lights, Emb

B4ZB1257(Single Color) ,B4ZB1218(RGB) 24VDC 12 * 2W LED Wall Recessed Underwater
Pool Lights, Dia 205mm SUS316 Stainless Steel Front Cover LED Swimming Pool Lamp





Important Notes:

*The fitting made of stainless steel with slow heat conducting must be installed
underwaterand less than 1meter in depth.


Features and Benefits:
1. 12pcs 2W or 3W High power LED with high total lumen output;
2. Diameter 205mm front round cover;
3. Molding 316 Stainless Steel resistant to corrosion;
4. Use the Silcone with good stickiness and thermal effect for reach the purpose of
radiating and prevent moisture.
5. Built-in Radiator helps prolong lifespan of LEDs.
6. IP68 total waterproof can be submersible into water and installed in depth less
than 1meter;
7. With PVC mounting sleeve and be easy Wall Recessed or ground recessed
installation;
8. Symmetrical optical lens, efficiency≥85%.


Material specifications:

Housing Molding Stainless Steel 316# Housing
Front Cover Stainless Steel 316#
Waterproof seal EPDM gasket
Glass Tempered glass. T=10mm
Lens All-in-one optical lens, efficiency≥85%
Cable gland IP-68 PG-11 copper and nickel coated
Seal Molding shaped silicon seal under the front cover Silicone glue among LED
lens and PCB
Gasket Glass and housing are silicone sealed
LED Single color or RGB Color power LED
PCB Excellent heat conductivity aluminum, coefficient of Heat
Conductivity≥2.0w/mk
Driver Constant current output
Single color LED=2-circuit output
RGB 3in1 LED=4-circuit output
Application environment Temperature of water between -20℃~40℃ less than 1 meter
depth.
Power cable
H07RN-F 2X1.0mm^2 L=3m (for Single color)
H07RN-F 4X1.0mm^2 L=3m(for RGB)
Mounting Sleeve With mounting sleeve






Technical Specification:

Item No. Light source Lens
Degree
(Θ 1 / 2 )
Input
voltage
(V)
Typical
operati , ng
current (mA)
Typical
Power
(w)
Typical
Lumi , nance
(lm)
IK rate
B4ZB1257
12×2W
Single Color
B32 30 24VDC 1200 28.8
Cool white=1395
Warm white=1180
08
B4ZB1218
12×2W
3-in-1 RGB
Full Color
B8 25 24VDC
R=400
G=500
B=500
33.6 726 08


Notes:

1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and
etc;
2. Specification and availability are subjected to change without notice.
3. For more detail specification in PDF, please contact us separately.
