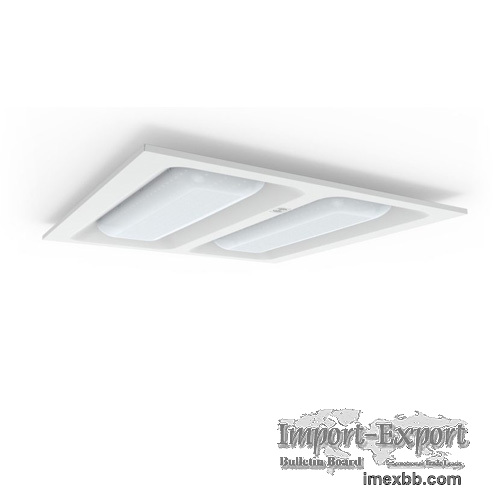

Backlit LED Panel Light

Backlit LED panel lights provide natural benefits through less material and
energy efficiency. The Backlit LED panel lights has lower operational costs
compare with other products.


The Backlit LED panel lights can provide an aesthetically pleasing to your
office environment as well as a high level of energy efficiency.


The Backlit LED panel lights extended life time of up to 10 times compare with
the traditional fluorescent tube. Along with extended life, the Backlit LED
panel lights also depreciate much slower, with roughly 90% of the original
lumen output after 10,000 hours operation.


Backlit LED Panel Light Specifications

Model NO. Rated Power LCP Lumen Output Rated Voltage
Frequency PF CCT CRI Beam Angle Size Daylight-
linked and
motion sensor
EM-PLN120W25-12 25W 24.45W 3024.57Lm 220-240Vac 50/60Hz >0.55
5000K >80 110 1192*292mm N
EM-PLS120W18-12 18W 17.97W 2272.16Lm 220-240Vac 50/60Hz >0.55
5000K >80 110 1192*292mm Y
EM-PLS120W16-12 16W 15.8W 1963.44Lm 220-240Vac 50/60Hz >0.55
5000K >80 110 1192*292mm Y
EM-PLN060W20-12 20W 19.71W 2536.07Lm 220-240Vac 50/60Hz >0.55
5000K >80 110 592*592mm N
EM-PLS060W18-12 18W 17.96W 2270.9Lm 220-240Vac 50/60Hz >0.55
5000K >80 110 592*592mm Y

EcoCare Carbon Solutions is currently the largest accredited person under the
Victorian Energy Upgrades, installing more than 10,000 lights weekly. We
provide led upgrade nsw, led light upgrade nsw, changing downlights, replacing
halogen downlights with led and etc. Want to know more? Please contact us.
