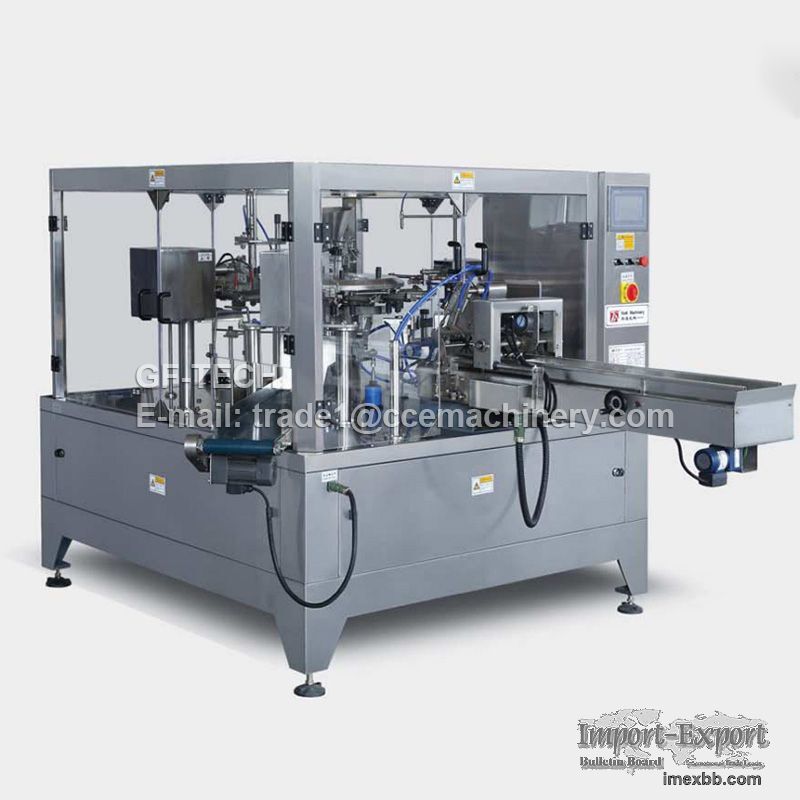

Bag Given Packing Machine

Bag Given Packing Machine
Automatic Granular Nuts Rotary Packaging Equipment
Easy to run, embrace advanced PLC from Germany Siemens, friend with touch
screen as well as electric control system, the man-machine interface gets
along.

GF8-200B/ 250B/300B Granular nuts Packing Machine Description
1. Easy to run, adopt sophisticated PLC from Germany Siemens, mate with touch
display and electrical control system, the man-machine user interface gets
along.
2. Automatic monitoring feature: no bag or pouch open error, no fill, no seal.
the bag can be utilized once again, avoid wasting packing products as well as
raw materials.
3. Security tool: Machine stop at abnormal air pressure, heating system
disconnection alarm.
4. The width of the bags could be readjusted by electrical motor. Press the
control-button might readjust the width of clip, quickly operate, and save
time.
5. The part where touch to the materials is made from stainless steel as well
as according with the demand of GMP. We are Bag Packing Machines Supplier.

Application
The powder packaging maker is suitable for granular items, such as nuts, candy,
dried fruit chips, corns, beans, rice and various other granular product
automated packaging.

Main Technical Parameters
Working position eight-working position
Bag material Laminated film/pe/pp
Bag pattern Stand-up bag with zipper ,gusset bag zipper, flat bag with
zipper ,
Filling weight range 10-1000g 10000-3000g 3000-5000g
Filling accuracy 0.5-1.5%
Bag size W:100-200mm
L:100-350mm W:150-260mm
L:150-350mm W:200-300mm
L:200-450mm
Speed 10-40bags/min 10-20bags/min 5-15bags/min
Voltage 380v 3phase 50/60hz
Total power 5.5KW 6.5KW 6.5KW
Compress air 0.6m3/min
