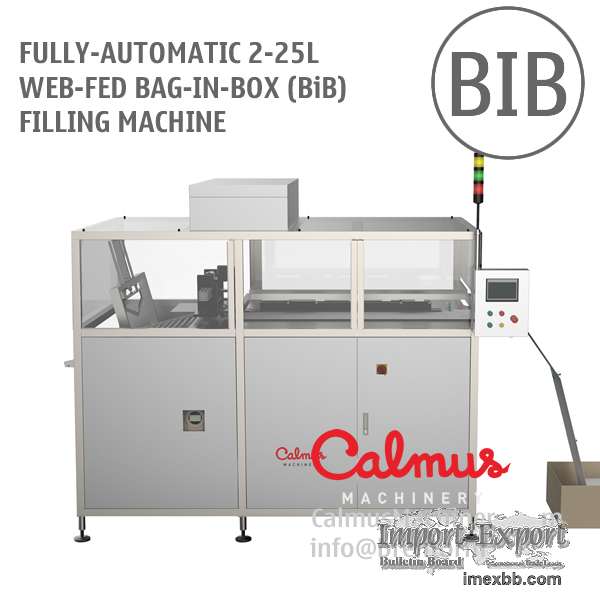

Bag in Box Filling Machine for Fully-automatic Liquid Packaging

Fully-automatic bag in box filling machine. It is a web-fed bag in box filler made
in China and is designed for packaging a wide range of liquids like drinking
water, edible oil, post mix syrup, fresh milk and beverage with 2-25L spouted
bags. This filling machine features fully automated by employing a PLC and touch
screen control system. The whole process of continuous bags feed, decapping,
vacuumization (optional), nitrogen injection (optional), filling, capping, cutting
apart from continuous bags and transiting to the conveyor can be completed
automatically, no human operation required.

This bag in box filling machine is designed with CIP (Clean-in-Place) function and
pipeline connection.

Features:
1. Fully-automatic, WEB type bags fed.
2. Easy to use. The touch-screen control system makes operation easy.
3. An electromagnetic or turbine flowmeter employed improves filling precision and
truly achieves the quantitative filling.
4. An air filter employed bring clean air to the filling space.
5. Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6. Filling a different capacity bag acceptable only by changing the setting.

Specifications:
Applicable bags: pre-cut continuous module or WEB type, 2-25 litres spout bags.
(Spout is called Gland or Flange too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 3.5 kW
Compressed air: 6-8 bar, 500 NL/min

We also supply the downstream cartoning line for bag-in-box packaging.

Minimum Order: 1 pieces
