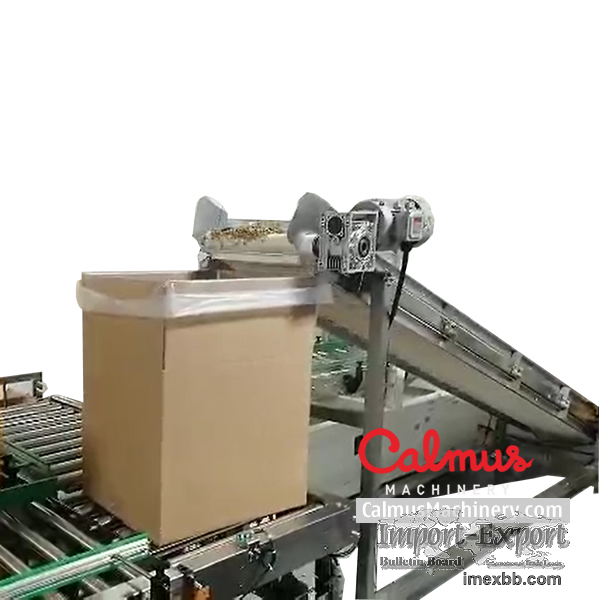

Bag in Box Forming Filling Sealing Line for Packaging Nuts Granules

Lined carton bag in box forming filling and sealing line. This bag in box line is
designed for packaging nuts or granules in bulk with bags in boxes. Erect cartons
and seal bottoms to form boxes, insert and line open-top bags in cartons, fill
products, heat-seal bags and seal box top, all automatically.

The bag in box line includes a carton erector, a carton liner (lining bags in
erected cartons by one each), a filling machine, a liner bag sealer, a carton
sealer and conveyors. The cartons can be sealed with tape or hot melt glue.

The carton liner inserts a poly bag in a box, open and fold the bag top over the
box top. The liner reduces labor and material costs, is simple to operate and easy
to adjust. High efficiency and labor saving.

The liner bag sealer takes the folded bag top off the box top, then fold it
inwards from sides, vacuumize the bag (optional), heat-seal the bag top and then
fold it in the box.

Specifications:
Applicable cartons: L250-550*W200-400*H150-400mm
Applicable bags (width): 460-840mm
Capacity: max. 180 boxes/hour

We also have a bag in box line for packaging liquids.

Minimum Order: 1 sets
