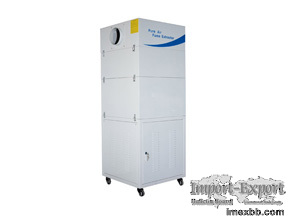

Bao-1500 Mobile Welding Fume Extractor

Bao-1500 mobile welding fume extractor is suitable for filtering fume in single
station such as manual arc welding, argon arc welding and secondary welding.
When bao-1500 works, the high-performance fan produces negative pressure, which
sucks smoke and waste gas into the filter. The high-efficiency filter element
made of imported material can be used for indoor or outdoor emission after
four-stage purification. The primary filter element can be reused after blowing
off the dust with compressed air.

Advantage Of Bao-1500 Mobile Welding Fume Extractor
Imported electrical components, professional control circuit, safe and
reliable.
A circular exhaust outlet can be added to the exhaust outlet directly through
the pipe or connected to the central smoke exhaust system.
Equipped with HEPA high efficiency filter, the filter area is large and the
dust capacity is large, which greatly reduces the use cost of consumables.

Specification Of Bao-1500 Mobile Welding Fume Extractor
Main Technical Parameters
Item Technical Data Remark
Primary-filter G3 class Non-woven pad
Pre-filter F5 class Non-woven pad
Main-filter H13 class HEPA Glass fiber Filter can remove 99.997％ of
all particle above 0.3 microns and 95％ down to 0.01 micron.
Gas-filter Active carbon Chemical molecular, oxidant & active carbon
adsorb noxious gas.
Average filtration rate ≥99.7％ It will be a little fluctuation
according to different materials.
Blower Technical Data
Item Technical Data Remark
Max.air flow 1500m³/h /
Input capacity 1100W Low capacity
Air pressure 2300pa Middle pressure
Running sound ≤60dBA /
Input power 220V, 50HZ /
Equipment Data
Item Technical Data Remark
Fume & dust inlet 200mm Single inlet, include one fume extract tube
Machine weight 100KG(N.W.) Machine with all elements

Application Of Bao-1500 Mobile Welding Fume Extractor
Suitable for single station manual arc welding, argon arc welding, secondary
welding, grinding and polishing and other fume collection and filtration.

Xintchillers is a reliable industrial water chiller manufacturers, we provide
industrial water chiller, fume extractor and etc. Want to know more Please
contact us now.

Minimum Order: 500 sets
