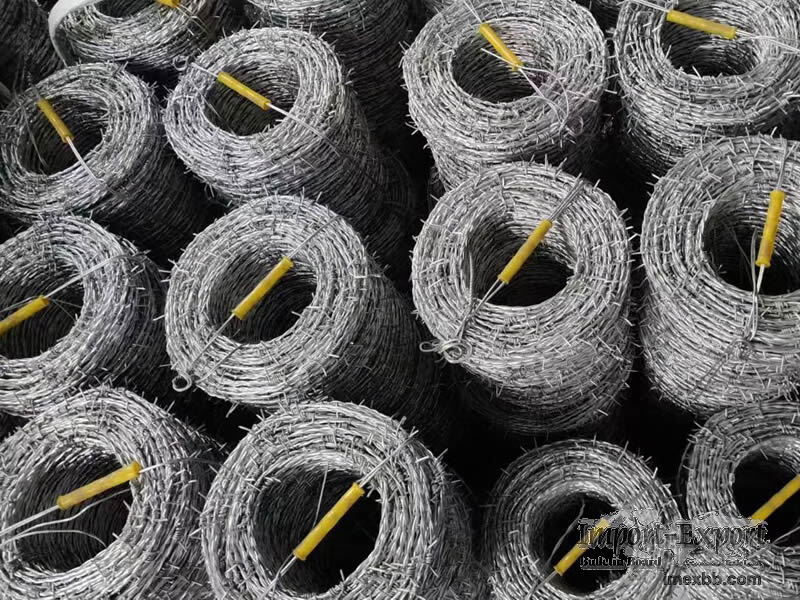

Barbed Wire

Barbed wire is made from low carbon steel wire, formed into double-strand Iowa
type with four-point barbs. The first number in the gauge specification refers
to the line wire, the second number refers to the barb wire. Common
combinations are 12# x 12#, 12# x 14#, 14# x 14#, 14# x 16#, and 16# x 16#
Youzi Development Zone, Anping County, Hebei, China
sales@wiremesh-fence.net
+86 133 8338 1333 / +86 13303187905
www.wiremesh-fence.net
Barbed Wire is used for boundary protection, livestock fencing, railway
fencing, highway fencing, plantation fencing, and general security use. It is
made from galvanized steel wire or PVC coated iron wire, with sharp barbs
twisted at regular spacing along the strand. Galvanized barbed fencing wire is
commonly selected for farm, grassland, and perimeter projects. PVC coated wire
is suitable when color matching or added surface protection is required. Common
colors include green, blue, yellow, and other requested colors. Barbs can be
spaced at 3″, 4″, 5″, or 6″ according to fencing requirements.

Technical Specifications
Product Name: Barbed Wire

Wire Material: Galvanized steel wire, PVC coated iron wire

Surface Finish: Galvanized or PVC coated

PVC Colors: Green, blue, yellow, and other colors on request

Common Strand and Barb Gauges: 12 x 12 BWG, 12 x 14 BWG, 12-1/2 x 12-1/2 BWG,
12-1/2 x 14 BWG, 13 x 13 BWG, 13 x 14 BWG, 14 x 14 BWG, 15 x 15 BWG, 15-1/2 x
15-1/2 BWG

Barb Spacing: 3″, 4″, 5″, 6″

Approximate Length per Kilo: Depends on wire gauge and barb spacing. For
example, 12 x 12 BWG is about 6.0617 m/kg at 3″ spacing and 7.6376 m/kg at 6″
spacing. 14 x 14 BWG is about 10.4569 m/kg at 3″ spacing and 13.1752 m/kg at
6″ spacing.

Structure: Twisted strand with fixed sharp barbs

Packing: Supplied in coils. Coil weight and packing method can be arranged
according to order requirements.

Custom Options: Wire gauge, barb spacing, coil packing, PVC color

Application
Grassland and Farm Boundary: Used for cattle areas, pasture lines, and farm
perimeter fencing.

Railway and Highway Protection: Installed along railway lines, highways, and
road boundaries to limit unauthorized access.

Industrial and Security Fencing: Suitable for factories, storage yards,
restricted areas, and perimeter security systems.

Plantation and Residential Boundary: Used for garden land, plantation fencing,
and dwelling house boundary protection.
