Contact: Shell Chang
Company: Chunglai Hung Probes Manufacturing Co., Ltd.
1F.,No. 22, Ln 367, Jianguo Rd, Yingge Dist.
New Taipei City 23941
Taiwan
Phone: 886-2-86775512
Fax: 886-2-86775513
E-Mail: Send Inquiry Member for over 1 year
Date/Time:  8/12/22 1:43 GMT


Bare Board Test Probe CPM-2

The bare board test probe is used for bare board (blank version) testing. To check the operation of a PCB circuit, the test probe is generally applied with the receptacle as the conduction confirmation and inspection of a circuit substrate to examine the fixture, analyze the completeness of the circuit, and inspect specification requirements of the circuit footprint, to ensure proper function of various circuits on PCBs.

Specification:
1. Recommended min. center: 2.54 (0.1")
2. Full travel: 4.2(0.165" ) / 2.54(0.1" )
3. Current rating: 3A
4. Contact resistance: 30mΩ
5. Spring force: 150g

Materials and finishes:
1. Plunger: Sk4 / PhBr / NI plated
2. Barrel: Brass , Gold plated
3. Spring: Stainless Steel

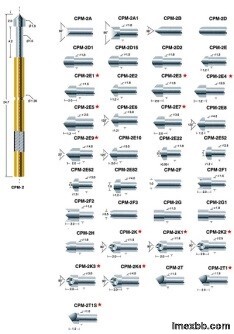

Bare Board Test Probe CPM-2
Enlarge Click to Enlarge
