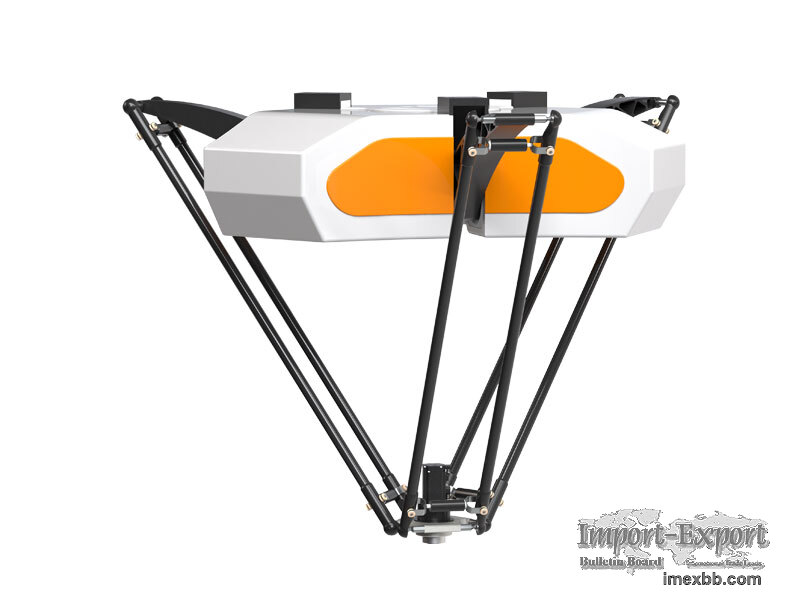

BAT2000M-S15 Delta Robot

Industrial Robot Sales

This high speed delta robot has the strong power and the superior operational
efficiency of agile with high speed. The high positioning accuracy is up to
0.1mm and the strong load capacity can reach 15kg. These contributes to a high-
speed and high-precision flexible production of our high speed delta robot.

Specification of BAT2000M-S15 Delta Robot
Robot Model Bat2000M-S15
Maximum Load 15kg
Working Space Diameter 2000mm
Number of Axles 4
Repeated Positioning Accuracy 0.1mm
Repeated Positioning Accuracy of four Axis Angle (°) 0.05
Maximum Speed 10m/s
Maximum Acceleration 150m/s2
Power Supply Voltage three-phase AC380V ± 10%, 50/60HZ
Rated Power 6kW
Ambient Temperature 0-45℃
Safety has monitoring, emergency stop and safety functions
Weight 255kg
Protection Grade IP54

As one of robotics and automation companies, we can offer sorts of automation
robotics for sale, anything you need, please leave us a message.

Minimum Order: 1 sets
