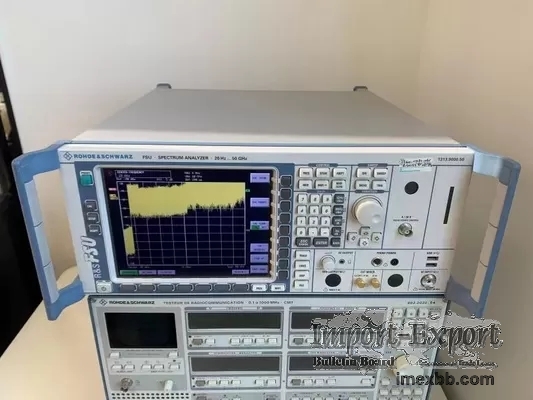

Rohde and Schwarz FSU50 RF Spectrum Analyzer 20 Hz to 50 GHz


Description of FSU50 Spectrum Analyzer



The R&S FSU spectrum analyzers are performance leaders in dynamic range,
phase noise, level accuracy and resolution bandwidth- all factors that are
essential for the user's ability to design, characterize, and manufacture
next generation wireless elements.

Features

Frequency Range- 20 Hz to 26.5 GHz
DANL- -158dBm (1 Hz RBW)
Phase Noise (Typ.)- -133 dBc @ 10 KHz offset (1 Hz RBW)
TOI (Typ.) +25 dBm
Resolution Bandwidth- 1 Hz to 50 MHz
DANL with Preamplifier option B24: typ. -168 dBm (1Hz RBW) @ 20 GHz
Fast ACP in time domain
Up to 70 measurments per second(including trace transfer via GPIB)
Measurement routines for TOI, MC ACP(R), OBW, CCDF, APD, etc. as standard.
Application firmware available for GSM/EDGE, Bluetooth, WCDMA/ HSPDA/ TD-
SCDMA, CDMA-2000/ 1xEV-DV/ 1xEV-D0, etc.
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Benchtop
Application Software
Bluetooth ( /FS-K8 )
CDMA2000 ( /FS-K83 )
GSM with Edge ( /FS-K5U )
HSDPA ( /FS-K74 )
Noise Figure ( /FS-K30 )
Phase Noise ( /FS-K40 )
TD-SCDMA ( /FS-K77 )
Average Noise Level
-158 dBm - +25 dBm
Frequency
8 MHz ( /B73 )
10 MHz ( /B27 /B4 )
640 MHz ( /B5 )
100 KHz - 3.6 GHz ( /B9 )
10 MHz - 3.6 GHz ( /B25 )
20 Hz - 50 GHz
100 KHz - 50 GHz ( /B24 )
List of Options
B10 External generator control
B12 Output attenuator for tracking generator for FSU, FSQ
B18 Removable Hard Disk (not retrofittable)
B19 Second Hard Disk for FSU-B18 (for FSU-B18,variant 1303.0400.02)
B20 Extended environment specification. Random vibr. 1.9G RMS, 0-55°C
(not retrofittable)
B21 LO/ZF connections for external mixers (for FSQ26, FSQ40,FSU26,
FSU43, FSU46, FSU50)
B24 Preamplifier 30dB, 100 kHz to 50GHz (for FSMR26/43/50, FSQ26/40,
FSU26/43/46/50;
B25 Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6
GHz for FSU, FSQ
B27 FM output, 10 MHz bandwidth
B4 OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
B5 Output for low phase noise 640MHz reference signal for FSU3, FSU8,
FSQ3 und FSQ8
B73 Vector signal analysis for FSU demodulation bandwidth 8 MHz (FSU),
broadband demodulation hardware included
B9 Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
C3 Three years of depot calibration coverage based on the R&S
recommended calibration interval - includes test data. The first calibration
is included with product delivery with 2 additional depot calibration(s).
C5 Five years of calibration coverage based on the R&S recommended
calibration interval - includes test data. The first calibration is included
with product delivery with 4 additional depot calibration(s).
DCV-2 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
FS-B33 USB mass memory write protection, disables writing to USB memory
sticks (ex factory only)
FS-K10 GSM/EDGE/EDGE Evolution Measurement Appl (for FSG/FSQ/FSU)
FS-K110 Analysis of TETRA II / TEDS signals (for FSQ, FSU with option FSU-
B73)
FS-K15 VOR/ILS measurements for FSMR
FS-K30 Application firmware for noise figure and gain measurements for
FSMR, FSP, FSQ, FSU
FS-K40 Application firmware for phase noise measurements for FSMR, FSP,
FSQ, FSU
FS-K5 Application firmware GSM/EDGE tests for FSP, FSU, FSQ
FS-K5U Upgrade of FS-K5 to FS-K10, GSM/EDGE/EDGE Evolution Measurement Appl
(for FSG, FSQ, FSU)
FS-K7 FM demodulator, allows measurement of FM specific parameters (for
FMU, FSP, FSU)
FS-K72 Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP,
FSU, FSQ
FS-K73 Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP,
FSU, FSQ
FS-K73+ 3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP,
FSQ, FSU, FSUP,
FS-K74 3GPP HSDPA base station test application firmware for FSMR, FSU,
FSP, FSQ
FS-K74+ 3GPP HSPA plus, base station test. Application firmware (for FSP,
FSQ, FSU, FSG;
FS-K76 3GPP TD-SCDMA base station test; application firmware for FSMR, FSP,
FSQ, FSU
FS-K77 3GPP TD-SCDMA mobile station test; application firmware for FSMR,
FSP, FSQ, FSU
FS-K8 Application firmware for Bluetooth measurement on FSP, FSU and FSQ
FS-K82 CDMA2000/1xEV-DV base station test application firmware for FSMR,
FSP, FSU, FSQ
FS-K83 CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP,
FSQ, FSU
FS-K84 1xEV-DO base station test application firmware for FSMR, FSU, FSP,
FSQ
FS-K85 1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ,
FSU
FS-K9 Measurements with NRP power sensors NRP-
Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
FSP-B10 External generator control for retrofit of FSP, FSU, FSQ, ESPI, ESCI
FSP-B28 Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
K40 Phase noise measurement application
K7 FM Demodulation
R3 Three years of depot repair coverage, including re-calibration if
necessary to complete the repair. First year of repair coverage is provided
by the 12-month new product warranty.
R5 Five years of depot repair coverage, including re-calibration if
necessary to complete the repair. First year of repair coverage is provided
by the 12-month new product warranty.
ZZA-411 19" adapter, 4 HU, 1/1 for BW2000 cabinets
