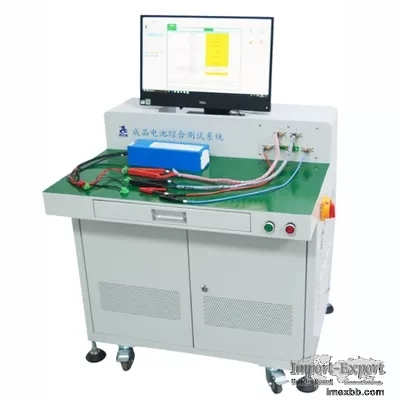

Binary Channels Battery Pack Tester 100V Cabinet Type Multipurpose

Product Description

100V Binary Channels Battery Pack Tester Quick Test Of The Cabinet Type



1. Equipment Characteristics

√ The system uses 32 bit ARM processor , voltage and current use 16-bit AD
converter

√ Test item Programmable control

√ The device supports charge and discharge port and tap batteries

√ The continuous output power of the equipment is 2KW

√ Equipment continuous load power is 6KW



2. Device Parameter Description

Test class Test item Measuring range Resolution ratio
open circuit voltage Open circuit voltage 1 10-100V ±2mV
Open circuit voltage 2 10-100V ±2mV
Communication internal resistance Communication internal resistance test
0-1000mΩ ±1mΩ
Discharge test starting voltage 0-100V ±2mV
End voltage 0-100V ±2mV
discharge current 0.1-60A ±1mA
discharge time 0-30S ±1mS
Discharge perflow test Over-discharge current 4-120A ±1mA
Overflow delay 0-60S ±1mS
short - circuit protection Short circuit protection delay 0-9999uS
±1uS
Charging test starting voltage 10-100V ±2mV
End voltage 10-100V ±2mV
charging current 0.1-20A ±1mA
charging interval 0-60S ±1mS
Charging protection test Charging over the flow 0-20A ±1mA
Charging delay 0-20S ±0.1mS
Resistance R1 / R2 NTC,ID 0-1000KΩ ±0.1KΩ




3. Product Mix

Case size (W*D*H )
Weight 100KG
Number of channels 1
Equipment accessories Test table pen line , online data line , user manual ,
upper computer software


















4. How to order ?

Please send us your purchase order by email or call us salesor we can make the
proforma invoice under your request

We need to know the following information for your order before sending your PI
