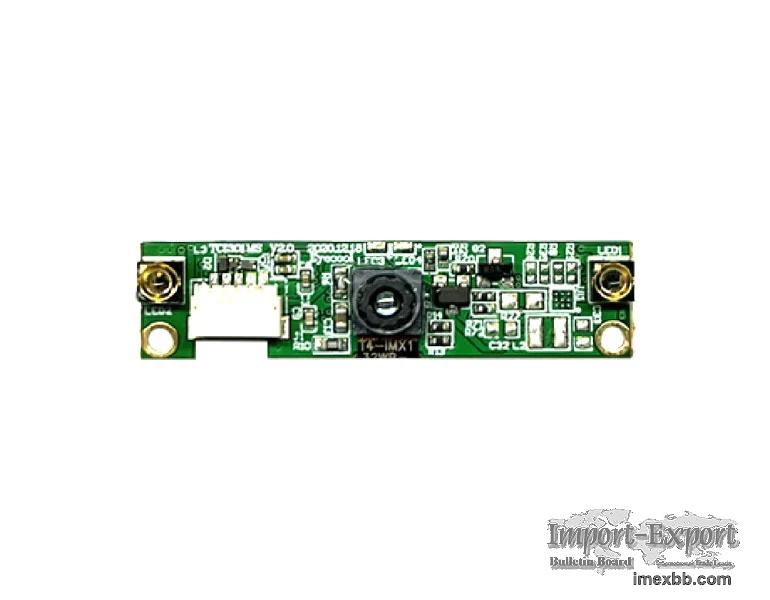

Binocular Iris Scanner Module TCI301MS

TCI 301 MS is a Binocular Iris Capture Module with the function of iris image
collection and processing. With compact size and simple structure, it is
ergonomic, easy to use and suitable for all kinds of people. Compatible with
USB and providing standard customized development interfaces, it can meet the
customized requirements of different users, easy to be integrated and is
applicable for places with high identity security requirements.

Feature of Binocular Iris Scanner Module TCI301MS
Easy to Integrate
Compact size and easy to integrate.

Software Development Kits
Provide standard SDK for customized development calling.

High Resolution Sensor
Make iris image quality better.

Infrared LED
Infrared LED on board to ensure the validity and accuracy of iris recognition.

Precise and Convenient
Supports both iris acquisition and recognition

Iris enrollment: capture and enroll iris features of users.

Iris comparison: conduct iris comparison on the embedded device with Eyecool
original iris comparison algorithm to realize user's identity verification in
more secure way.

International Certification
The product has obtained ISO/IEC 62471 certification.

Parameter of Binocular Iris Scanner Module TCI301MS

Basic Parameters CMOS 1/7 sensor
Resolution 1920(H) x 1080(V) (16:9 mode)
Pixel Size 1.12um x 1.12um
Image Transport Rate 1920*600/30fps
FOV H：29.1°, V：9.4°, D:30.4°
Aperture F2.2
Distortion TV Distortion<1.0
CRA <29.8°
Lens Temperature Range -20°/+80°
Lens Structure 2P+IR
Depth of Field 28~33CM
Image Format MJPG/YUY
Operating Wave 810nm
Dynamic Range 60dB
Dimensions 40.17x10.17x6.6MM
Os Supported Windows2003/2008/Xp/7/8/8.1/10
Android 4.1 or above with UVC
Linux 2.6.32 or above with UVC
Other Parameters Power Supply 5V±10, Ripple is required to be below
100MV
Operating Current 340MA±5
Operating Temperature -10˚C~+55˚C (Humidity: 10 RH~95 RH)
Storage Temperature -20˚C~+70˚C (Humidity: 10 RH ~95 RH)

There are many biometric authentication companies, but we are one of the best
choices for you.

Minimum Order: 1 sets
