Black Mono 405W Solar Panel Solar PV Energy System 410W 415W 420W

Product Description
RS21-405_420MX(166-132 black mono-facial modules)

P-Type /Positive power tolerance of 0~+3%/Max module efficiency 21.03%

Suitable for ground power plants and distributed projects

Advanced module technology delivers superior module efficiency
·Gallium-doped Wafer·Non destructive cutting ·MBB half-cut

Excellent power generation performance

·Excellent IAM and Weak light response ·Low temperature ratings ·0.55% linear
Power decline

High module quality ensures long-term reliability

·Strict selected material ·Advanced technology ·Leading standard

Ultra-hydrophilic self-cleaning coating techniques



Electrical Characteristics STC RS21-405MX-E1 RS21-410MX-E1 RS21-415MX-E1
RS21-420MX-E1
Maximum Power (Pmax) 405W 410W 415W 420W
Power Tolerance 0~+5W 0~+5W 0~+5W 0~+5W
20.28% 20.53% 20.78% 21.03%
Maximum Power Current (Imp) 10.71A 10.78A 10.85A 10.92A
Maximum Power Voltage (Vmp) 37.82V 38.03V 38.25V 38.46V
Short Circuit Current (Isc) 11.48A 11.54A 11.60A 11.66A
Open Circuit Voltage (Voc) 44.81V 45.13V 45.44V 45.75V
Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m2, Cell Temperature
25°C)
Electerical Characteristics NOCT RS21-405MX-E1 RS21-410MX-E1 RS21-415MX-
E1 RS21-420MX-E1
Maximum Power (Pmax) 304.24W 307.99W 311.75W 315.50W
Maximum Power Current (Imp) 8.65A 8.71A 8.76A 8.82A
Maximum Power Voltage (Vmp) 35.17V 35.37V 35.57V 35.77V
Short Circuit Current (Isc) 9.33A 9.38A 9.43A 9.48A
Open Circuit Voltage (Voc) 42.12V 42.42V 42.72V 43.01V

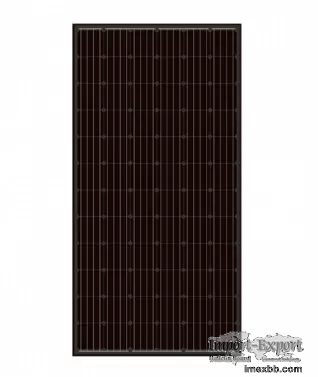

 Black Mono 405W Solar Panel Solar PV Energy System 410W 415W 420W
