BLADE LIFTER


After the rapid development of the wind energy market in recent years, the wind
energy resources in the plain area with good construction conditions have
almost been developed. At present, wind turbine heavy haul transport carriers
are being transported to the mountainous area and sea with difficult
construction conditions. However, the mountain roads are narrow and the turning
radius is small.

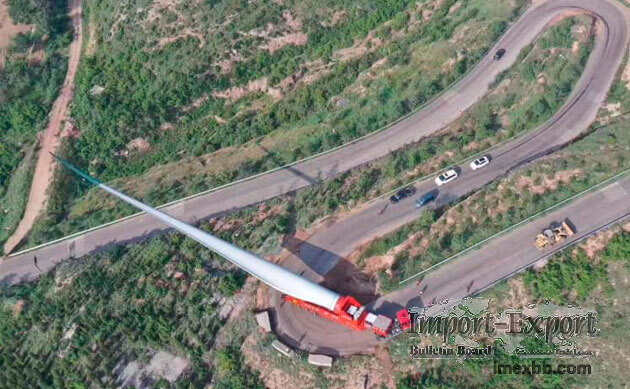

In order to effectively avoid the collision between the wind blade and the
mountain, the wind blade must be transported in an inclined state. Therefore,
Rui trailer's blade lifting appears in the market, and will greatly help for a
transport company for such area to use.

HOW DOES BLADE LIFTER TRANSPORT WORK
Generally, in order to make the wind blade avoid obstacles more effectively, it
is also necessary to make the blade rotate horizontally 360 °, so a slewing
bearing is set between the blade lifter and the slewing platform. However, when
the blade lifter lifts the blade, the center of gravity of the blade rises
upward and moves to one side of the blade lifter. If the blade lifter wind
turbine of the distance from the vertical line passing through the center of
gravity of the wind blade to a certain point and the weight of the wind blade
is the blade gravity distance, the gravity distance of the wind blade relative
to the slewing bearing changes during the lifting process of the wind blade.

In other words, the balance condition of the blade lifter is different under
the horizontal and lifting state of the wind blade transport. This brings a
problem, that is, if it is designed that the upper part above the slewing
bearing is balanced when the wind blade is lifted by a certain angle, such as
30 ° (the center of gravity of the upper part is on the axis of the slewing
bearing), the blade can rotate 360 ° when the blade is lifted by 30 ° or
near, but if the blade is placed horizontally, one side of the blade is too
heavy. When 360 ° rotation, the blade lifter can easily turn over to one side
of the wind blade. If the upper part is designed to be balanced when the wind
blade is placed horizontally, it can rotate 360 ° when the wind blade is
placed horizontally. However, if the wind blade is lifted at a certain angle,
such as 30 °, one side of the counterweight is too heavy. When turning 360 °,
the blade lift is easy to overturn to one side of the counterweight.

However, it is inevitable that the center of gravity will rise when lifting the
wind blade. Therefore, how to make the center of gravity of the upper part only
rise while the gravity distance relative to the slewing bearing remains
basically unchanged or changes as little as possible is the problem that the
blade lifter needs to solve.

The simplest blade lifter is to hinge a swing frame on the rotary platform, set
a pitch slewing bearing between the swing frame and the transition plate, fix
the wind blade on the transition plate, and push the swing frame to swing
around the hinge fulcrum through the lifting oil cylinder, which can lift the
wind blade upward at a certain angle.

At present, blade lifter in this special market mainly adopts three technical
ways to solve this problem. First, increase the weight of the whole unit so
that the weight of the rotating platform, blade lifter and wind blades, which
change the weight of the loaded heavy moment, is relatively small, so that the
change of the heavy moment of the whole unit is relatively small during the
lifting process; The second method is to set the movable counterweight, that
is, set the movable counterweight on the rotary platform, and move the
counterweight automatically or manually while lifting the wind blade, so that
the center of gravity of the upper part is basically maintained on the axis of
the rotary bearing; The third is the method of moving the blade lifter, that
is, setting a sliding slider and chute to make the blade lifter slide to one
side of the slewing bearing while lifting the wind blade, so as to keep the
center of gravity of the upper part basically on the axis of the slewing
bearing.

If you want to know more types of heavy haulage trailers, please visit our
website.
