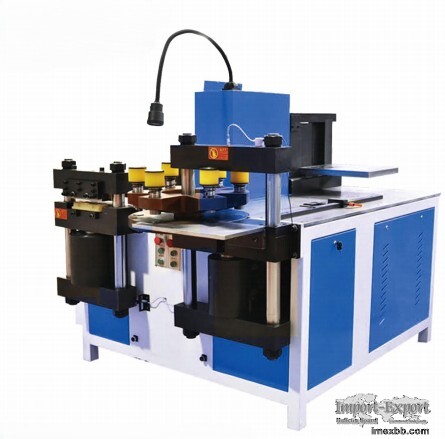

BOLT Brand CNC Turret-type Hydraulic 3 in1 Busbar Processing Machine

These stations can operate simultaneously or sequentially, significantly
reducing processing time and boosting production efficiency. The bending
station utilizes Siemens PLC control (Germany). Its primary function is
processing copper and aluminum busbars of various specifications. Simply
select the required workstation to quickly and conveniently perform
operations on copper/aluminum bars, including shearing, punching (round
holes, elongated holes), horizontal/vertical bending, U-bending, embossing,
flattening, twisting, and cable lug crimping.

Punching Unit:

Six-in-One Turret Structure: Precision-engineered from ductile iron
forging, ensuring absolute concentricity of upper and lower dies.

Versatile Tooling: Holds 6 punch dies for 6 hole types. Accommodates dies
of different sizes/shapes, eliminating frequent changeovers. CNC-machined
die mounting holes ensure high precision and long service life.

Triple Positioning: Positioning pins, ruler, and optical guide.

Surface Protection: Ensures no surface marks on workpieces.

Custom Hole Capability: Utilizes specialized dies for non-standard holes
(e.g., round, square, elliptical).

Dual Safety Controls: Foot pedal and push-button limit switches.

Shearing/Cutting Unit:

Precision Cut: Sharp blades with dual-column shear structure guarantee
flat, clean cuts – no droop, burrs, or scrap.

Dual-Pressure System: Prevents material lifting at corners.

Dual Safety Controls: Foot pedal and push-button limit switches.

Bending Unit:

Dual Worktables: Enables simultaneous, non-interfering operation of all
three units (shear, punch, bend).

Closed Bending Structure: Ensures uniformity during flat bending and
embossing, enhancing repeat positioning accuracy for batch production.

Siemens PLC Control: Delivers high bending precision (±1° bend angle
accuracy, ±0.5° repeatability).

Multi-Function via Tooling: Change dies for horizontal bends, vertical
bends, U-bends, embossing, flattening, twisting, and lug crimping. Features
automatic bend angle control.

Efficiency & Storage: System includes memory function for easy storage and
recall of settings. Automatic stop timers per station enhance energy
efficiency.

Direct Input: Simply input height/length to produce parts (e.g., Z-bends).

Minimum Order: 1 sets
