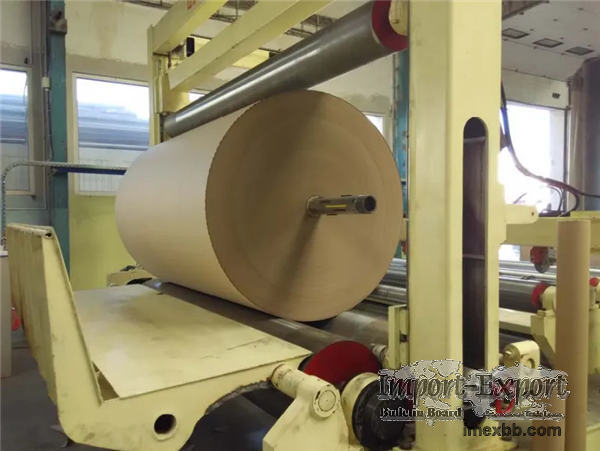

Bottom Feed Slitting Rewinder

The bottom feed slitting rewinder receives paper rolls from the paper-making
machine and positions them on the unwinding station. Its integrated brake
system maintains precise web tension while enabling instant stopping to
minimize paper waste during web breaks. The machine precisely slits the paper
width through guided rollers and cutting mechanisms, then rewinds the material
to specified tightness and diameter tolerances.
Paper Basis Weight Range (Grammage) 70-250 g/m²
Paper Density Approx. 680 kg/m³
Maximum Web Tension 1200 N/m
Parent Roll Width (Reel Spool) Max. 2760 mm
Parent Roll Diameter (Reel Spool) Max. Ø 2000 mm
Trimmed Roll Width Max. 2600 mm
Trimmed Roll Diameter Max. Ø 1500 mm
Designed Speed 650 m/min
Maximum Working Speed 600 m/min
Feeding Speed (Bottom Feed) 25 m/min
Feeding Method Bottom Feed
Support Roll Diameter Ø 420 mm
Gauge 4080 mm
Center Distance of Reel Spool 3880 mm ± 50mm
Knives Unit (Set) 4 (Pneumatic Top Knife)
Main Motor Power 45 kW
