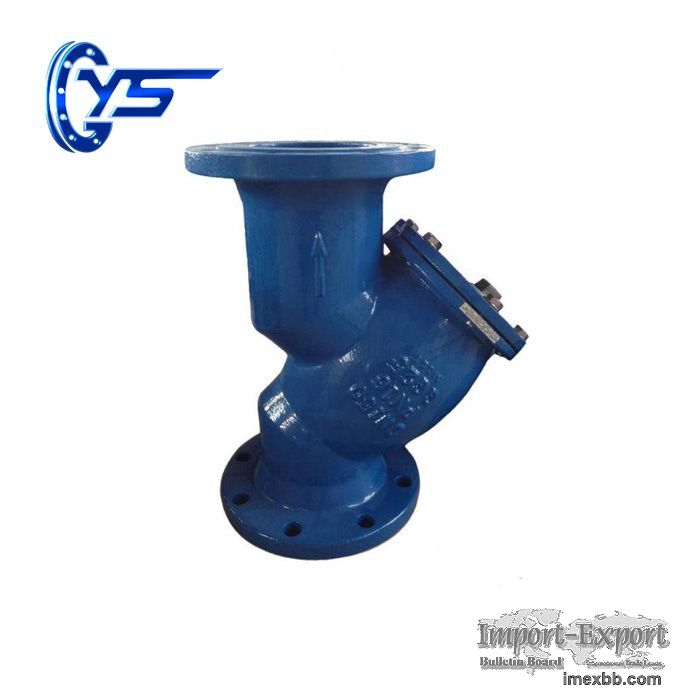

BS Strainer BS Valve Manufacturer BS SERIES

BS Strainer BS Valve Manufacturer BS SERIES
Medium temperature: ≤100 ℃
Medium: water
Caliber: DN50-300mm
Pressure: 1.0-1.6mpa
Body material: ductile iron, gray iron
Connection method: flange
BS SERIES Details
BS Strainer Material of main parts
Part Name material
Body / bonnet Ductile iron, gray iron
Filter stainless steel

British Standard Filter Performance Specifications
model Nominal pressure
(mpa) Test pressure (mpa) proper temperature Applicable medium
Strength (water) Sealed (water)
British Standard Filter 1.00  1.50  1.10  ≤100 ℃ water
British Standard Filter 1.60  2.40  1.76  ≤100 ℃ water

British standard filter dimensions and connection dimensions
model Nominal diameter
(mm) Size (mm)
L D D1 D2 b n-φd
PN10 PN16
British Standard Filter 50 220 165 125 102 20 4 *
φ18
65 270 185 145 122 20 4 * φ18
80 290 200 160 138 twenty two 8 * φ18
100 350 220 180 158 twenty four 8 * φ18
125 390 250 210 184 26 8 * φ18
150 440 285 240 212 26 8 * φ22
200 540 340 295 268 30 8 * φ22
250 660 405 350 320 32 12 * φ22
300 720 460 400 372 32 12 * φ22
