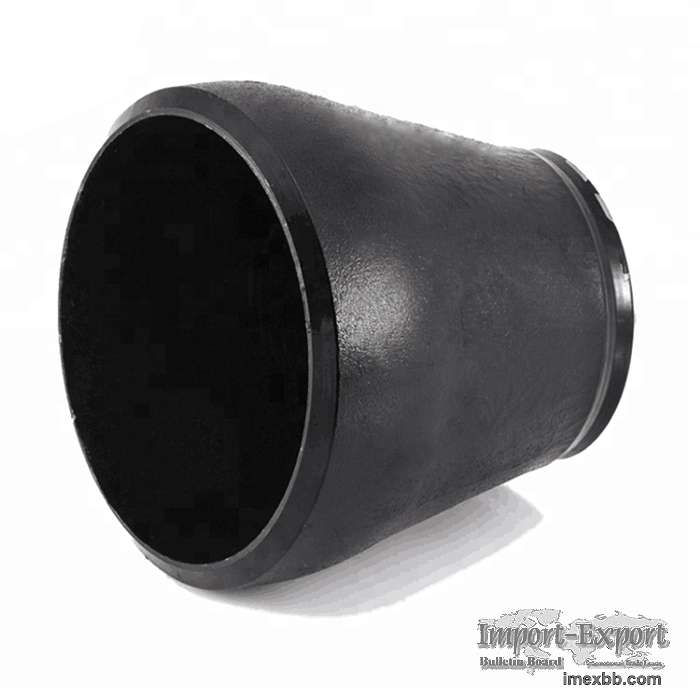

Butt Weld Concentric Reducer carbon steel pipe fittings

ASME B16.9 Butt Weld Concentric Reducer
Seamless concentric reducer for butt welding
Sch40 (Std) weight wall thickness
Made of black ASTM A234 WPB carbon steel material
Conforms to the ASME B16.9 standard for butt weld fittings.

Buttweld Reducers are one of the many types of fittings that can be used to
control the flow within a piping system. In a piping system, there are two
major types of reducers: concentric reducers and eccentric reducers.

What is a Concentric Reducer?
A buttweld concentric reducer is a type of pipe fitting designed to connect
pipes of differing diameters in a straight line.
It features a symmetrical design where the center axis of the inlet and outlet
pipes align, resulting in a smooth transition between the two pipe sizes.This
is an important feature that distinguishes it from an eccentric reducer.

Concentric Reducer Design and Construction
Concentric reducers typically have a conical shape, with one end having a
larger diameter than the other. The tapering transition allows for a gradual
reduction in pipe diameter, minimizing turbulence and pressure losses within
the piping system. These reducers are commonly manufactured using materials
such as carbon steel, stainless steel, and various alloys, ensuring durability
and corrosion resistance.

Concentric Reducer Applications:
Concentric reducers find widespread applications across various industries,
including:
1. Chemical Processing: Used in chemical plants to connect pipelines carrying
different chemicals or fluids.
2. Oil and Gas: Employed in pipelines for crude oil, natural gas, and refined
petroleum products.
3. Water Treatment: Utilized in water distribution systems to transition
between pipes of different sizes.
4. HVAC Systems: Integrated into heating, ventilation, and air conditioning
systems for ductwork modifications.

Minimum Order: 1 pieces
