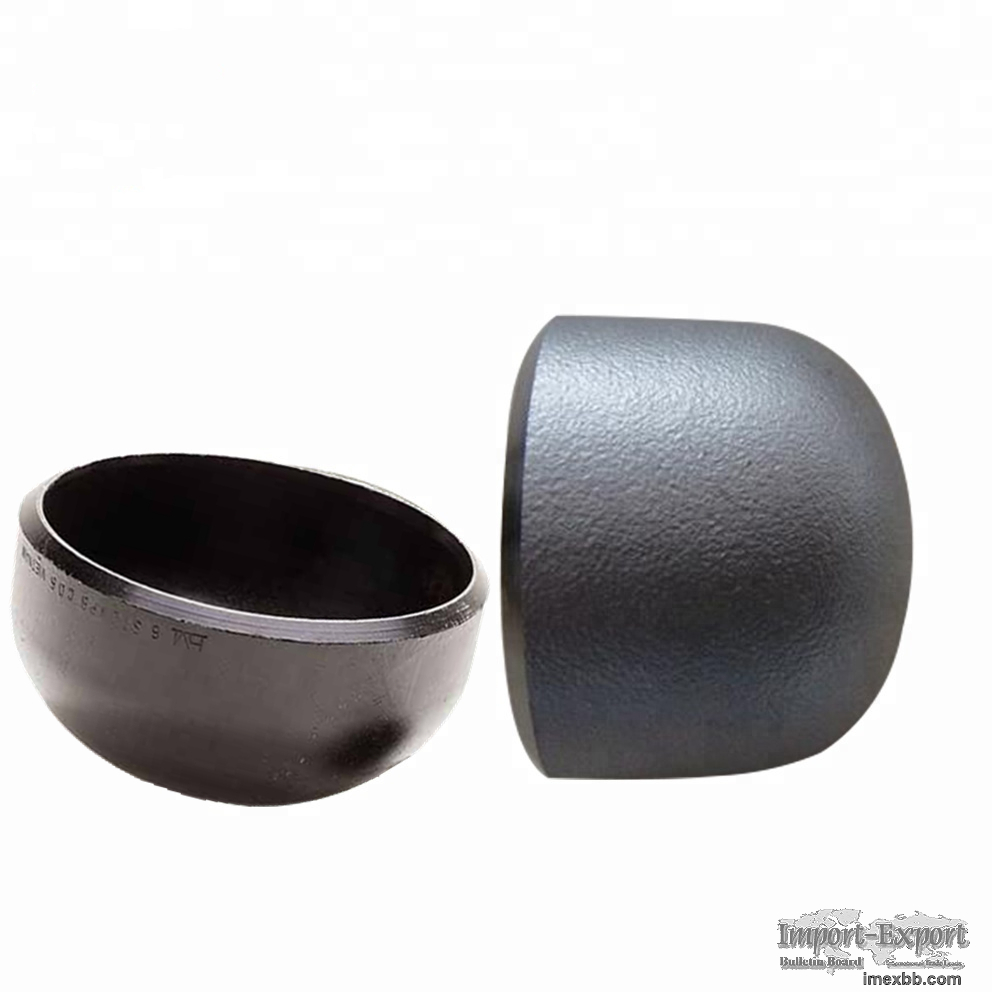

Buttweld Cap ASME ANSI B16.9 carbon steel pipe fittings

Standard: ASTM A234, MSS SP-75, ASTM A403
Manufacturing Standard: ASME ANSI B16.9, DIN2615, JIS B2312
Size Range: 1/2”, 1”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16”, 20” to
48”. (DN15-DN1200)
Thickness: SCH 10, SCH 40, SCH 80

Material: Carbon Steel, Stainless Steel, Alloy Steel
Surface Coatings: Black Painted, Varnished, Epoxy Coated, Galvanized

Butt Weld Steel Pipe End Cap Prevents Fluid Leakage
Carbon steel butt weld cap is a commonly used pipe fitting, also known as a
pipe cap or end cap. Its main function is to seal the end of the pipe to
prevent fluid leakage and external substances from entering the pipe, and
ensure the safe operation of the pipeline system. (You can also use a blind
plate to close the pipeline; differently, the blind plate is detachable and the
welded steel cap is not removable.)
It is usually circular and matches the outer diameter of the pipe. It is
connected to the end of the pipe by welding. Due to the strong welding
connection, it can withstand high pressure and temperature, and maintain
reliable sealing performance.

Click here to know the buttweld caps applications.

We are a butt weld caps manufacturer in China, supplying all schedules in
various materials, including carbon steel, stainless steel, and alloy steel.
Rayoung produces buttweld pipe caps in ASME, DIN, JIS, and other required
standards. And it has excellent corrosion resistance and can resist corrosion
media such as oxidation, acidity, alkalinity, and salt solutions.

Material Grades:
Carbon Steel Butt Weld Cap: ASTM A234 WPB, A420 WPL3,WPL6, WPL9,WPHY42, WHPY52,
WPHY60, WHPY65, WPHY70.
Stainless Steel Pipe Cap: ASTM A403 WP304/304L, 316/316L, 321, 310S, 317,347
Alloy Steel BW Pipe Cap: ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Minimum Order: 1 tons
