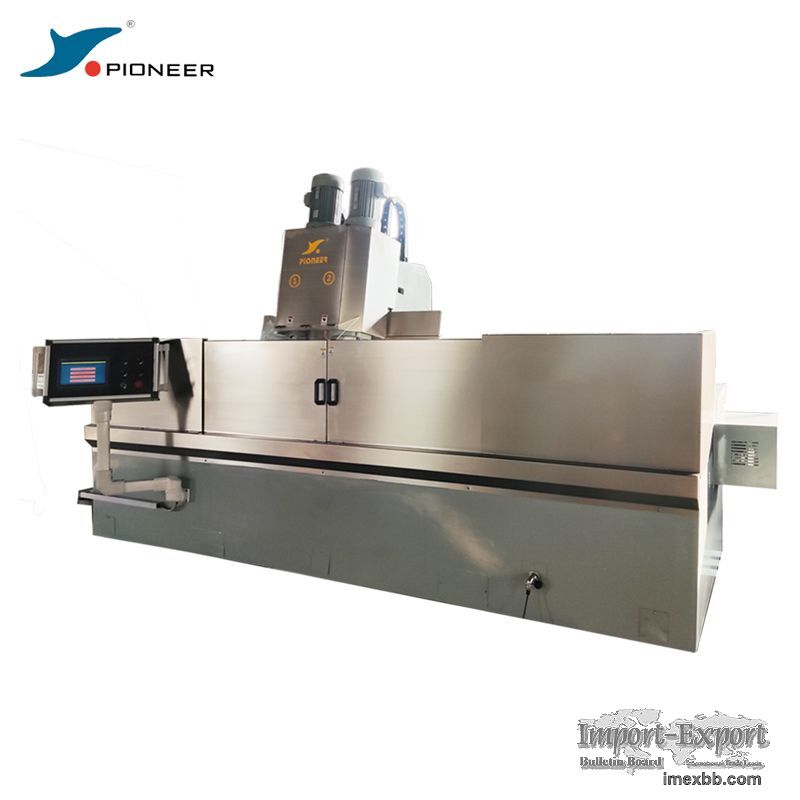

BYMS Gravure Cylinder Grinding Machine

BYMS gravure cylinder grinding machine applies pneumatic pressing head unit,
which keeps the pressure constant during the grinding process and ensures the
consistency of the grinding effect. Compared with the similar production,our
computer control program is more convenient. The grinding heads can find their
working position from anywhere to avoid the unnecessary resetting time.
Main Technical Parameters
Model BYMS 1500 BYMS 2000 BYMS 2500
Cylinder diameter (mm) 90-400 90-400 90-400
Cylinder length (mm) 400-1500 400-2000 400-2500
Cylinder rotation speed (r/min) 100-450           100-450
          100-450
Grinding head to-and-fro speed (mm/min) 100-1300 100-1300 100-
1300
Grinding head rotation speed (r/min) 100-450 100-450 100-450
Grinding head up/down speed (mm/min) 560 560 560
Pressure adjustment range (kg) 20-120 20-120 20-120
Dimension(L×W×H) (mm) 3700×1600×2000 4200×1600×2000
4700×1600×2000
As a leading manufacturer of Copper Grinding Machines, we are dedicated to
providing the highest quality products and services to our customers. Our
machines are specifically designed for the production of gravure printing
cylinders, and are capable of grinding copper, chrome, and with other material
precision and efficiency.
