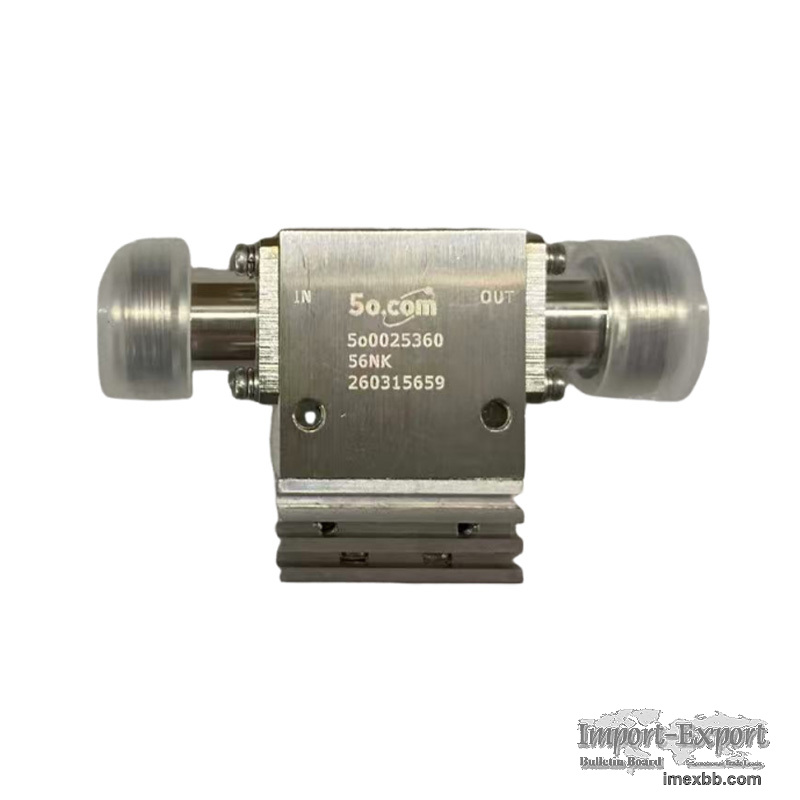

C Band 5.0-6.0GHz RF Ferrite Coaxial Isolator for Microwave System

C Band 5.0–6.0GHz RF ferrite coaxial isolator, high isolation and low
insertion loss. Protect microwave transceivers, radar and satellite systems
from reflected power.

Model number:5o002536056NK
Frequency Range:5.0~6.0GHz
Insertion Loss:0.4dB
Isolation:20dB
VSWR:1.25
Forwa , rd Power: 300W
Reverse Power:100W
Dimension:25*36*18mm

5o.com is a modern high-tech enterprise specializing in the research,
development, production, and sales of RF microwave passive components. Focusing
on independent innovation, the company primarily manufactures microwave passive
components such as RF isolators, circulators, coaxial loads (terminals),
coaxial attenuators, power splitters, waveguide-to-coaxial converters,
directional couplers, filters, and duplexers/multiplexers. These products are
widely used in 5G communications, satellite navigation, radar electronic
countermeasures, and aerospace applications.

Minimum Order: 1 pieces
