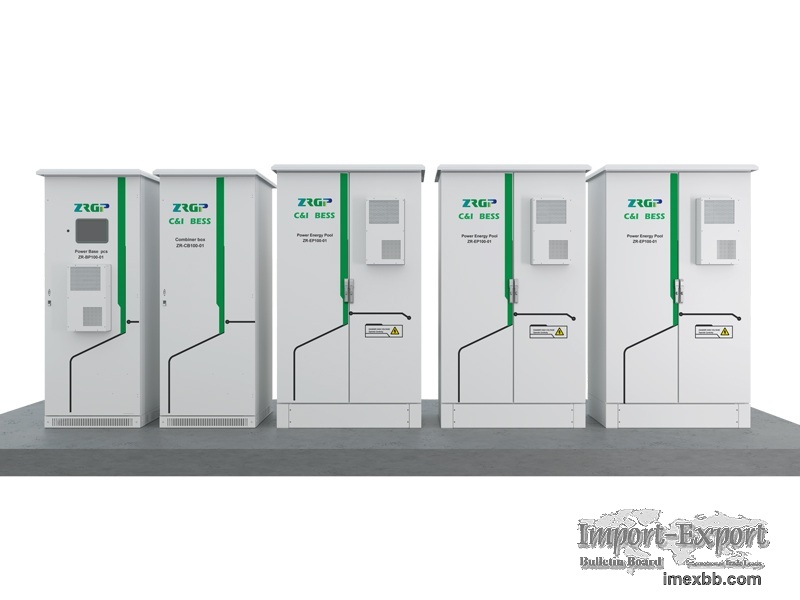

C&I SERIES -POWER BASE POOL

ZRGP provides high security and high reliability C&I Energy storage system
solution, one-stop integrated battery pack, PCS Control system, fire control
system, air conditioning system, monitoring system, Coordinate the efficient
operation of each component through control system, absorption and Release
energy.

Characteristics

Adopt two-stage topology, wide voltage input range;
Can be inserted into photovoltaic panels, support photovoltaic direct charging
;
MPPT photovoltaic maximum power tracking function;
STS can achieve seamless switching off grid;
PCS power 50kW-100kW, meeting the needs of microgrid;
Modular design, easy to install and easy to transport;
It adopts lithium iron phosphate battery with long life and high safety
performance;
Each cluster has a battery capacity of 96.8kWh and supports 15 cluster
expansion;
Integrate PCS, lithium battery system, and control cabinet to ensure product
compatibility.
Scientific and safe, short construction period; green and environmental
protection, promoting environmental friendliness; intensive land use, reducing
resource consumption, etc.

FEATURES & BENEFITS OF COMMERCIAL BATTERY ENERGY STORAGE SYSTEMS

Modular design
Easy for transportation

Easy for installation

Easy for maintenance

Flexible applications
PCS offers a variety of models

Configurable battery capacity

optional application scenarios

03 CUBE
Specialties
Fast response speed, immediately support weak power grid

Supporting multiple off-grid drooping parallel

Security Systems
The security system in the container, including sound and light, water
immersion, smoke and other alarm systems, fire protection systems, temperature
and humidity, access control, temperature control systems and monitoring
systems, etc., the internal EMS conducts centralized monitoring and dispatching
via dry contacts, RS485 and TCP/IP.

APPLICATIONS OF COMMERCIAL BATTERY ENERGY STORAGE SYSTEMS
pool 03a
Application 1：PV Microgrid
Through the mode of photovoltaic + energy storage, power supply can be realized
in areas without electricity. When the photovoltaic is sufficient during the
day, it can be used by the load, and the excess power is stored in the battery.

When the photovoltaic is insufficient at night, the energy stored in the
battery is released to the load to continue supplying power.

It can solve the small power supply needs of remote areas, such as
communication base stations, border posts, small villages, etc.

pool 02a
Application 2：PV+Diesel Microgrid
Through the combined operation of photovoltaic energy storage diesel engines,
continuous power supply in areas without electricity and weak electricity can
be realized.When the photovoltaic is sufficient during the day, it can be used
by the load, and the excess power is stored in the battery. When the
photovoltaic is insufficient at night, the stored electric energy of the
battery is released to the load to continue supplying power.Under the diesel
engine is working in standby mode, when the new energy generation is
insufficient during the day or night, the diesel engine is started to
supplement the power supply.

It can solve the needs of medium-sized power supply in remote areas, such as
islands, large villages, and factories in weak current areas.

pool 05a
Application 3: Diesel replacement and optimized control
The combined operation of energy storage diesel engines can achieve maximum
efficiency utilization of diesel engines and solve the problem of diesel engine
wear.When the load is large, the diesel engine and energy storage can operate
together, and the energy storage can quickly respond to load jitter, so that
the diesel engine can be kept in the best operating state.When the load is very
small, the diesel engine stops working, and energy storage supplies power to
the load, saving fuel。

It can solve the large-cale power supply demand in weak current areas,
construction sites, oil extraction rigs, large villages, etc.

pool 04a
Application 4: Emergency power supply and backup power
The energy storage system is connected to the original power system through a
quick switch.When the mains power fails, it can quickly switch to the energy
storage system to ensure the reliability of power supply. Moving the system to
a place without electricity, through black start and virtual synchronous
machine control can ensure emergency load power supply.

It can solve temporary electricity demand, large-scale events, plant backup,
transformer expansion, power supply reliability guarantee, etc.
Regular Features
Grid Voltage 400Vac
Grid Frequency 50/60Hz(±2.5Hz)
Rated Power 50kW/100kW
Protection Level IP54
Working Temp Range  -10℃~50℃
Humidity Range 0~95%
Altitude 3000m
Battery Cluster(Cabinet) Features
Model ZR-EP100-01
Battery Chemistry LiFePO4
Rated Voltage 460.8Vdc
Rated Energy 96.8kWh
Size(W*H*D) 1270mm×2140mm×833mm
Weight About 1.0t
Battery Connection 18 sets of ZR-FE24210-0835R1 in series
Battery Cluster Connection Max. 15 cabinets in parallel
Energy Converter Features
Qty of Battery Cluster(s) 1 or more 2 or more
Model ZR-BP50-01 ZR-BP100-01
Battery Voltage Range 250~520V 250~520V
Maximum DC Current 130A 260A
PV Voltage Range 520~900V 520~900V
PV Maximum Current 220A 440A
Connection 3P4S
Power Factor  -1~1
Communication RS485,CAN,Ethernet
Isolation Power-line Frequency Isolation
Certifications CE LVD,IEC 62109,EMC,AS/NZS61000,AS4777

As one of Commercial Battery Energy Storage Systems Companies, we will do our
best to meet all the needs of customers.
