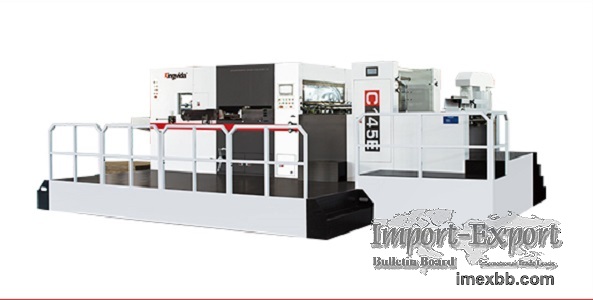

C145E Automatic die-cutting and creasing machine with stripping station

C145E Automatic die-cutting and creasing machine with stripping station
Auto Die Cutting and Creasing Machine Feature introduction
Lead edge paper feeding unit
1.Uniquely designed lead edge feeding system adopt non-stop bottom suction
leading edge feeding method, it overcomes the temperature, humidity and
differences of paper weight cause by paper warp, make sure warp paper or thick
paper feeding more smoothly.
2.The unique servo paper feeding system of this machine improves the precision
of paper in place. Unique motion control program completely eliminates the
phenomenon of paper scratching.
3.Install side pat baffle device, this device ensures that the paper stack
position is basically correct when feeding paper.
4. The operator only need to input the length of paper, the paper wheel can
completely send out the paper.
Positioning and transport unit
1.High power servo drive for paper transfer and with a unique curve trajectory,
to ensure that the paper in place and accurate.
2.Phase adjustment and PLC control precision.
3.There are one sets positioning push gauge on both sides, it ensure the
positioning accuracy of side paper.
