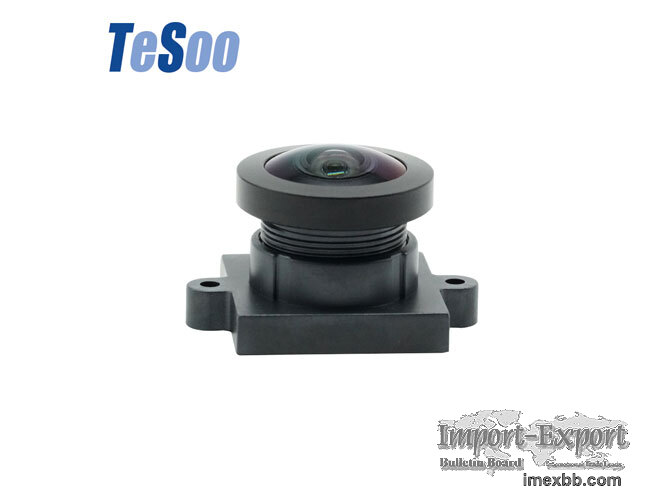

Car Camera Lens

Tesoo car camera lens generally meets the characteristics of wide-angle, high
relative illumination, high light, and other features. The sensor size of the
car camera lens is 1/2.5'' to 1/4''. TTL: 13.2-21.43mm. EFL: 0.83-6.50mm. F.NO:
2.0/2.2/2.6. MBFL: 1.69-6.55mm. Get a vehicle lens quote now!

Specifications of Car Dash Camera Lens

PART No. TS-4013T-A00
TTL 14.11mm
EFL 0.83mm
F/NO 2.0
MBFL 1.69mm
SENSOR  SIZE 1/4'' 1/3''
FOV FOV
(D) 195° 195°
(H) 195° 195°
(V) 158° 190°
DISTORTION(F-θ) <30% <30%
MAX IMAGE CIRCLE φ3.68mm
Mount M12*0.5
CONSTRUCTION 2G4P+Plastic
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*12.42
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2913U-A00
TTL 13.2mm
EFL 1.35mm
F/NO 2.0
MBFL 2.20mm
SENSOR  SIZE 1/2.9'' 1/2.7''
FOV FOV
(D) 215° 215°
(H) 215° 215°
(V) 130° 140°
DISTORTION(F-θ) <-20% <-20%
MAX IMAGE CIRCLE φ4.70mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*11
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2717O-A00
TTL 16.81mm
EFL 3.20mm
F/NO 2.2
MBFL 3.68mm
SENSOR  SIZE 1/3'' 1/2.7''
FOV FOV
(D) 128° 150°
(H) 105° 118°
(V) 54° 60°
TV-DISTORTION <-26% <-32%
MAX IMAGE CIRCLE φ6.90mm
Mount M12*0.5
CONSTRUCTION  All Glass +Metal
DIAMENSIONS φ14*13.13
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2716G-A08
TTL 15.69mm
EFL 5.60mm
F/NO 2.6
MBFL 6.24mm
SENSOR  SIZE 1/3'' 1/2.7''
FOV FOV
(D) 64° 71°
(H) 50° 57°
(V) 38° 42°
TV-DISTORTION <-5% <-6.5%
MAX IMAGE CIRCLE φ6.80mm
Mount M7*0.35
CONSTRUCTION All Glass+Metal
DIAMENSIONS φ8.1*9.45
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2721F-A00
TTL 21.43mm
EFL 6.50mm
F/NO 2.0
MBFL 6.55mm
SENSOR  SIZE 1/2.7'' 1/2.5''
FOV FOV
(D) 59° 64°
(H) 48° 51°
(V) 34° 40°
TV-DISTORTION <-8% <-12%
MAX IMAGE CIRCLE φ8.80mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONS φ14*15.45
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

Now the price of HD lens is affordable, if you have needs, please contact us.

Minimum Order: 100000 pieces
