Car Surround View Lens

Tesoo panoramic lens generally meet the characteristics of wide angle, high
relative illumination, high light and other features. It has a 1/3 inch lens.
TTL: 13-16.64mm. EFL: 0.83/1.35/1.40/1.70/1.83/2.20mm. F.NO: 1.8/2.0/2.4. MBFL:
1.69/2.10/2.16/2.20/2.63mm. Get panoramic lens quote now!

Specifications of Car Surround View Lens

PART No. TS-4013T-A00
TTL 14.11mm
EFL 0.83mm
F/NO 2.0
MBFL 1.69mm
SENSOR  SIZE 1/4'' 1/3''
FOV FOV
(D) 195° 195°
(H) 195° 195°
(V) 158° 190°
DISTORTION(F-θ) <30% <30%
MAX IMAGE CIRCLE φ3.68mm
Mount M12*0.5
CONSTRUCTION 2G4P+Plastic
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*12.42
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-4013T-A01
TTL 14.11mm
EFL 0.83mm
F/NO 2.0
MBFL 1.69mm
SENSOR  SIZE 1/4'' 1/3''
FOV FOV
(D) 220° 220°
(H) 210° 220°
(V) 158° 190°
DISTORTION(F-θ) <27% <27%
MAX IMAGE CIRCLE φ4.0mm
Mount M12*0.5
CONSTRUCTION 2G4P+Plastic
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*12.42
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-3013U-A00
TTL 13mm
EFL 1.40mm
F/NO 1.8
MBFL 2.10mm
SENSOR  SIZE 1/3'' 1/2.7''
FOV FOV
(D) 210° 210°
(H) 210° 210°
(V) 130° 150°
DISTORTION(F-θ) <-20% <-20%
MAX IMAGE CIRCLE φ4.40mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*10.9
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2913U-A00
TTL 13.2mm
EFL 1.35mm
F/NO 2.0
MBFL 2.20mm
SENSOR  SIZE 1/2.9'' 1/2.7''
FOV FOV
(D) 215° 215°
(H) 215° 215°
(V) 130° 140°
DISTORTION(F-θ) <-20% <-20%
MAX IMAGE CIRCLE φ4.70mm
Mount M12*0.5
CONSTRUCTION All Glass +Metal
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*11
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2818S-A02
TTL 16.64mm
EFL 2.20mm
F/NO 2.0
MBFL 2.16mm
SENSOR  SIZE 1/2.7'' 1/2.3''
FOV FOV
(D) 188° 200°
(H) 160° 176°
(V) 85° 130°
DISTORTION(F-θ) <-9.8% <-11%
MAX IMAGE CIRCLE φ6.90mm
Mount M12*0.5
CONSTRUCTION All Glass+Metal
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*14.48
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

PART No. TS-2816T-A01
TTL 15.89mm
EFL 1.83mm
F/NO 2.4
MBFL 2.63mm
SENSOR  SIZE 1/2.7'' 1/2.3''
FOV FOV
(D) 212° 220°
(H) 180° 198°
(V) 102° 150°
DISTORTION(F-θ) <-0.6% <-1%
MAX IMAGE CIRCLE φ6.80mm
Mount M12*0.5
CONSTRUCTION All Glass+Metal
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*13.26
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃
PART No. TS-2015T-A00
TTL 14.8mm
EFL 1.70mm
F/NO 2.0
MBFL 2.10mm
SENSOR  SIZE 1/2.7'' 1/2.3''
FOV FOV
(D) 200° 200°
(H) 190° 200°
(V) 100° 150°
DISTORTION(F-θ) <-20% <-20%
MAX IMAGE CIRCLE φ5.90mm
Mount M12*0.5
CONSTRUCTION 2G4P+Metal
IP Rating IPX7 or IP69K
DIAMENSIONS φ14/16*13.26
Operating temp. -40 ~ +85℃
Storage temp. -40 ~ +90℃

If you want to buy 1 3 inch lens, please contact us.

Now the price of optical lenses is affordable, if you want to buy lens
automotive, please contact us.

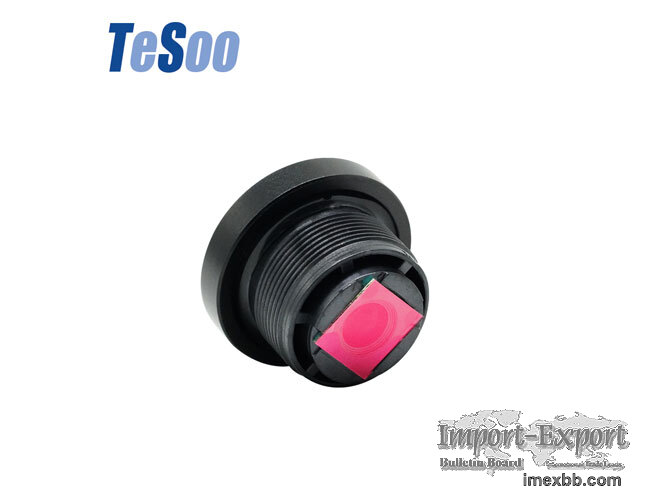

Car Surround View Lens
